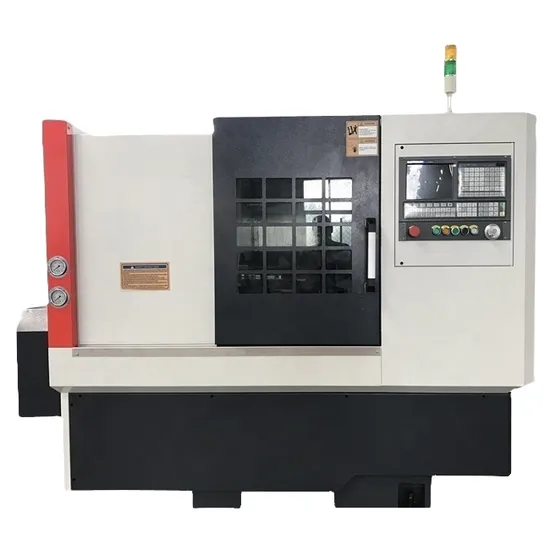

CNC Metal Lathe Machine Tck50A Slanting Bed Lathe Machine

Product Description

Features:
1,Higher accuracy Taiwan linear guideways.
2,Higher speed spindle unit, Optional homemade spindle.
3,Higher rigidity cast iron.
4,Integrated automatic lubrication.
5,One-piece Casting slant bed CNC lathe.
1,This series of machines is achieved by the addition of a bolt-on wedge that is mounted on the cross slide - the true slant bed machine casting is manufactured with the slant built-in. This not only offers more rigidity and thermal stability, but also proves to give the casting more overall mass, and means you have a much heavier machine with a smaller footprint. Typically the true slant bed design is offered in one slant angle: 45 degrees.

2,This machine is suitable to process all kinds of small and middle-sized shaft and plate workpieces, and could also turn various threads, circle arc, circular cone, inside and outside surface of the revolved body. This machine is widely used in sanitary, valve, electrical appliance, instrument, automobile, motorcycle, bearings, and so on.
Specification

Model and specifications	TCK50A
Guideway width	550mm
Max. swing over bed	560mm
Max. swing over slide	260mm
Max. Spindle Speed (r.p.m)	3500r.p.m
Spindle Motor Power(kW)	15kw
Travel (X Axis)(mm)	260mm
Travel (Z Axis)(mm)	900mm
Dimension(L*W*H)	3250*1860*2000
Positioning Accuracy (mm)	±0.03
Repeatability (X/Y/Z) (mm)	±0.03
Tool Post Stations	8
Weight (KG)	4000
Number of Axes	2
NC system	optional Kane, Siemens, Taiwan Baoyuan new generation, fanuc (According to customer's requirement )
No. of Spindles	Single
Max. Turned Length (mm)	500
Width of bed (mm)	440mm
Spindle Bore(mm)	15kw
Name	Metal Cnc Lathe
Product type	Cnc Horizontal Turning Lathe Machine

Packing and Delivery
Our transportation methods are various, including sea, air, land transportation, etc. After the customer places an order, we often choose the fastest and most convenient transportation method according to the customer's needs. If the customer has special needs for the transportation method, we will also Customized services are also supported.
Why choose us ? 1. Compared with other factories, casting material which produced by our company independently is really better than the others. 2.one year guarantee for whole machine .3.24-hours technical support by E-mail or telephone4.Provide extra accessories for the machine5.Also provide service of make program according to your drawings6.Customized or special design is OK.
Company Profile
FAQ
1.Q: Which trade term I can choose?
A: You can choose FOB,FCA
2.Q: How can I get quotation from you?
A: You can make the inquiry online on made-in-china, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 24 hours on work days, and within 48 hours on holiday.
3.Q: how can I make the payment?
A: We can make the deal on made-in-china online platform, you can pay by T/T . You can also pay to my company business bank account.
5.Q:What is your delivery time ?
A:The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
We want to know:
Please tell us your specific purchasing requirements, so that we can make specific quotations.

---
