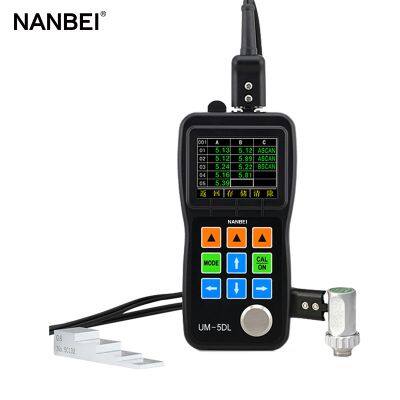

UM-5DL penetrating coating and storage data ultrasonic thickness gauge
Application:
It can measure the thickness of metal materials, pipes, pressure vessels, plates (steel plates, aluminum plates),
plastics, iron pipes, PVC pipes, glass and other special materials. It can also measure coated materials such as
paint layers on the surface of workpieces. In the field of manufacturing operations, metal processing industry,
chemical industry, commodity inspection and other testing.
NBUM-5DL Color Screen with A/B-Scan Digital digital metal thickness gauge
Professional in Solving Various Difficult Thickness Measurement
Features
2.4” color OLED, 320 X 240 pixels, contrast 10,000:1
Live Color A-Scan
Users could directly see the color waveform of the ultrasonic sound (or A-scan) on the screen, which is quite
important for the occasions that we need to check the correctness of the testing results. Many cases will cause
wrong testing results or even noreadings. We could find the causes easily through the A-scan. Adjust the three
parameters of GAIN, BLACKING, GATE, and then we will get the right readings.
Live Color B-Scan
NBUM-5 series thickness gauge has time base B-scan function. Move the probe along the workpiece surface,
then the cross -sectional profile of the workpiece display, use for observe the underside contour of the workpiece.
It could be automatically capture a minimum value of the B-scan image, and indicate the position of the minimum
by a red triangle. You can see any point thickness value of the B-scan image by moving the pointer.
Through oating Function No longer need to waste time to remove the coating
We are the first one to develop ultrasonic thickness gauge NBUM-1D with through coating technology in China.
Now NBUM-5D and NBUM-5DL also have this widely acclaimed function. It's realized by measuring the two
continuous bottom surface of the substrate. This mode also has more advantages:
1.Exempt Zero Calibration
2.High Stability, the measuring value is not influenced by the probe pressure, the coupling layer thickness and the surface dust of the workpiece.
3.Zero Drift
Larger and More convenient storage capacity
It can save one hundred thousand thickness values and one thousand A/B-scan waveforms,waveform and thickness
values can be mixed stored in the same file.Storage capacity is 20-200 times to the similar products.
Use grid format storing files,the screen can display 15 thickness values and show its position in the grid,which is
more convenient for the users to browse the stored data of the thickness.
USB 2.0 full speed connector, powerful DataView data statistics and management software.
More Practical Function
Difference/Reduction Rate:Difference mode displays the difference between the actual value and the normal value.
Reduction rate calculates and shows the percentage of the thickness reduction when the material becomes thin.
Typical application is to measure the metal material which is due to bending and becomes thin.
Max./Min. Capture:On this mode, the current thickness, minimum thickness and the maximum thickness will be
shown on the screen at the same time.
Alarm Mode:Dynamic change the color of thickness readings when alarming.
Update Rate:Selectable 4Hz,8hz and 16Hz. 4Hz for ordinary application,when you need a quick scan,such as high
temperature measurement, you can choose higher update frequency.
Multi- Languages Available:Chinese,English,Japanese,French,German.
Standard TC510 Probe
The probe is the heart of the instrument, NANBEI has the world’s leading probe production technology. TC510
probe uses the high performance piezoelectric ceramic chip, with integrated metal die-casting shell, practical
design of probe and cable separated, regardless of costs to create high quality .
Specification
Specifications of UM-5DL digital metal thickness gauge
Name
| Digital metal thickness gauge
|
Display Type
| 2.4'' color OLED, 320×240 pixels, contrast 10,000:1
|
Operating Principle
| Pulse echo with dual elemet transducers
|
Measuring Range
| 0.50mm to 508mm(0.02'' to 20.00''), depending on material, probe and surface condition
|
Measuring Resolution
| Selectable 0.01mm, 0.1mm(selectable 0.001'', 0.01'')
|
Units
| Inch or Millimeter
|
Rectify Mode
| RF+, RF-, HALF+, HALF-, FULL
|
Display Mode
| Normal, Minimum/Maximum capture, DIFF/RR%, A-Scan, B-Scan
|
V-Path Correction
| Automatic
|
Update Rate
| Selectable 4Hz, 8Hz, 16Hz
|
Material Velocity Range
| 500 to 9999m/s(0.0197 to 0.3939 in/μs)
|
Languages
| English, French, German, etc.
|
Alarm Settings
| Minimum and Maximum alarms. Range of 0.25mm to 508 mm(0.010'' to 20.00''). Dynamic waveform color change on alarm
|
Power Requirements
| 2 AA size batteries
|
Operating Time
| Approximately 40 hours
|
Instrument Shut-off
| Selectable ALWAYS ON or AUTO OFF after 5, 10, 20 minutes of inactivity
|
Operating Temperature
| -10℃ to +50℃(+10°F to +12°F )
|
Size
| 153mm × 76mm × 37mm (H × W × D)
|
Weight
| 280g including batteries
|
The Difference Between UM-5 Series digital metal thickness gauge
| UM-5
| UM-5D
| UM-5DL
|
Color Display
| √
| √
| √
|
Live A-Scan
| √
| √
| √
|
Time-based B-Scan
| √
| √
| √
|
Control of Gain and Gate
| √
| √
| √
|
Blanking
| √
| √
| √
|
Thru-paint&coatings
| ×
| √
| √
|
Data Logger
| ×
| ×
| √
|
DataView Software
| ×
| ×
| √
|
>>
