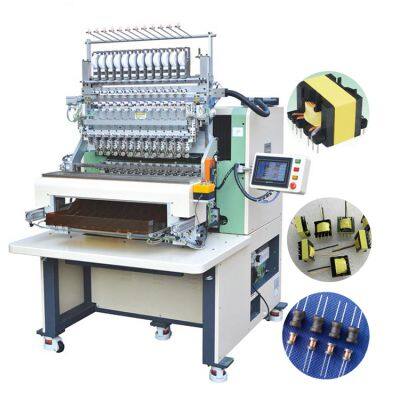

Transformer fully automatic 12-axis winding machine
Supply of automatic power transformer twelveaxis winding machine
1.This series of machine key components all imported from Japan, high reliability and durability,
greatly increase the life of the machine
2.Design novel, simple structure, strong rigidity, simple operation, easy maintenance
3.Programmed by computer or touch screen, the freedom to choose, Chinese display easy to understand
4.Unique quick coupling fixture design, reducing the time change type
5.Guide the needle bar 0 °/90 °/135° optional to install, easy bobbin winding different angles
6.Use precision tension control with anti-tensioner, make the product line more neat row
7.Has optional automatic loading and unloading function, can greatly save time wound
8.With automatic clamp, break, rule out the waste line features
9.Increase the servo finger and feed unit can achieve precision winding small products
10.Password save feature, modify the program to prevent non-related personnel
The New- Transformer Coil Automatic Winding Machin
coil winding machine for transformer12 spindle fully automated
|
Spindle number
| 12
|
Spindle speed
| 12000 (rpm)
|
Spindle pitch
| 50/70 (mm)
|
Spindle servo motor power
| 3000 (W)
|
Traverse motor power
| X:400, Y:400, Z:400 (W)
|
Spindle diameter
| standard:10 special:12 (mm)
|
Wire range
| 0.02-0.4mm
Add air pressure scissors and replace the motor
Can be around 0.4mm or more
|
Max.wire diameter
| 45/65 (mm)
|
Traverse moving range
| X:110, Y:150, Z:70 (mm)
|
Traverse speed
| 250 (mm/sec)
|
Controller
| HYE-3
|
Power voltage
| 220V,50/60 HZ (V)
|
Power voltage
| 3000W
|
Air pressure
| 0.45-0.55 (Mpa)
|
Machine size
| 1300(L)x1100(W)x1400(H) (mm)
|
Machine weight
| 640 KG
|
>>
