100kN Electronic Servo Computer Control Universal Tensile Tension Torison Compression Bending Strength Test Testing Machine for Plastic Rubber Fabric Material

Product Description

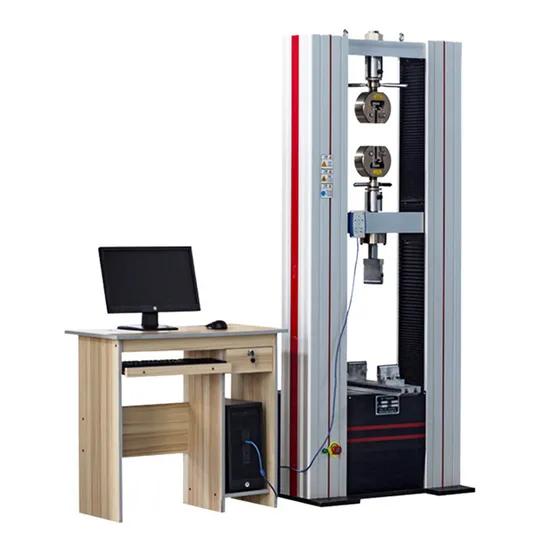

WDW-100D Computer Control Electro Universal Testing Machine
Application
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
Standard
Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN51221. Strain measurement meets or exceeds the following standards:ASTM E83.ISO 9513,BS 9513,BS3846,EN10002-4 Safety: the computer control servo-hydraulic universal testing machine: EN 50081-1,EN 61010-1 Tensile test at room temperature:DIN EN 10002-1,ISO 6892, AStE A370, ASTM E8 Tensile test on reinforced steel: ASTM A615/615M,ISO10606 Compression test: DIN 1048,ISO6784,ASTM C39,ISO4506 Tensile test for bolts:ASTM F606-07 Tensile test for stands:ASTM A416,BS 5896
Features
(1)Full computer display of testig process.
(2)Manual loading speed will meet your appropriate testing speed.
(3)Stable and reliable high intensity 2 columns and 2 reeling screw columns structure load frame.
(4)Adopt oil-hydraulic automatic clamping which an be operated by separate control box.
(5)Timely display software will provide accurate record of testing process.
(6)Report guide will create your testing report very easily.
(7)Overload protection will secure operators.
Specification

Model	WDW-5kN/10kN/20kN	WDW-30kN/50kN	WDW-100kN	WDW-200kN/300kN	WDW-500kN/600kN
Max. Load force	5kN 10kN 20kN	30kN 50kN	100kN	200kN 300kN	500kN 600kN
Crosshead Travel(mm)	1100mm	1100mm	1100mm	1100mm	1100mm
Effective tensile space(mm)	700mm	700mm	700mm	400mm	400mm
Effective Test width	400mm	450mm	500mm	600mm	650mm
Crossbeam travel speed(mm/min)	0.001-1000	0.001-500	0.001-500	0.001-300	0.001-300
Load resolution	1/300000
Tensile grip	Manual wedge tensile fixture (hydraulic Automatic Clamping Fixture Optional)
Round specimen clamping range(mm)	4-9,(9-14,14-21optional)
Flat specimen clamping range(mm)	0-7,(7-14,14-21optional)
Compression plate(mm)	100x100mm
Electronic extensometer	YUU10/50(optional)
Large deformation extensometer	DBX-800(optional)

Pictures
FAQ
1. Are you a manufacturer?
Yes, we are professional manufacturer of every kinds of testing machines in China. In general, every machine shipped from our factory provides 12 months of free maintenance, taking into account shipping reasons. We can extend the maintenance period for our customers for 2 months.
2. Do you have after-sales service? How can I ask? What about warranty?
Before the delivery of the equipment, we will carry out the factory inspection and the equipment will be shipped after the inspection. If your machine does not work properly, you can contact us and we will try our best to communicate with you via email or skype video chat. We promise we will reply to you within 24 hours and with 3 Within a working day to provide solutions. After confirming that it is really necessary, we can send you new parts or on-site maintenance.
The service does not include mechanical failure due to the following reasons:
(1) Wrong operation;
(2) Privately modified;
(3) Failure caused by non-equipment itself
(4) Use environment that is not suitable for equipment operation. Such as high temperature, humidity, corrosive gas or vibration.
(5) Problems caused by movement or transportation.
(6) Consumable components.
(7) Natural disasters
3. What is the delivery deadline?
Most of the time, we have inventory at the factory. If not, the delivery time is usually 15 to 20 days after receiving the payment. If you need it urgently, we can consider making special arrangements for you.
4. What kind of packaging and transportation do you use?
Under normal circumstances, we will use ordinary orders such as DHL, Fedex, UPS TNT transport. Large orders will use aviation or shipping.
5. Can the device be customized? Can I customize my own design on the device?
We can not only provide standard machines, but we can also provide customized machines according to your needs.
At the same time, we can also place your trademark on the machine.
6. What kind of packaging do you use?
Plastic sealed and sturdy wooden box.
7. What payment methods do you support?
Paypal, T/T, Western Union,L/C

---
