US$90,000.00-200,000.00
|
1 Set
(MOQ)
|
Basic Info.
Product Type
Extrusion Molding Machine
Assembly Structure
Separate Type Extruder
Engagement System
Intermeshing
Screw Channel Structure
Deep Screw
Computerized
Computerized
Product Name

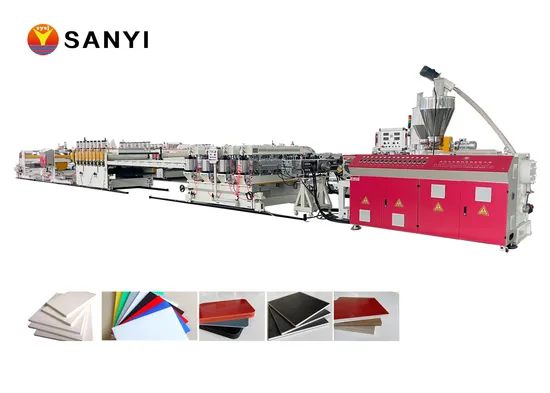

PVC Foam Board Making Machine WPC Sheet Extrusion
Raw Material
PVC/CaCO3/Wood Powder
T-Die Mold
Jc Times, Weilie, Eko
Usage
Cabinet Board, Furniture, Door, Wall Panel
Installation
Click or Dry Back
Transport Package
Wooden Package
Production Capacity
15set/Month
Product Description
| Production line&Auxiliary machines: |
| Part a: PVC WPC wood plastic composite celuka skinning crust foam board making machine production line extrusion line |
| NO. | Machine name | Type | Qty. | Note |
| 1 | Conical double screw extruder | SJSZ80/156(400kg/h) SJSZ80/173 (600kg/h) SJSZ92/188(800kg/h) | 1set | with spring up loader,screw&barrel from Zhoushan, gearbox from Jiangyin. |
| 2 | Electric control system | | 1set | With full sets Siemens electrics: frequency converter,AC contactor,all breakers,relay,buttons,etc. |
| 3 | T-die mould | 1320mm | 1set | JC Times or Eco or Weilei |
| 4 | Calibration unit | | 1set | 4 or5 pairs with size:1500*600*100mm |
| 5 | Cooling bracket device | | 1set | 5000mm(length)*1500mm(width) |
| 6 | Haul-off device | | 1set | 8or 10paris |
| 7 | Shearing unit in length and width | | 1set | Siemens motor |
| 8 | Dust vacuuming unit | | 2set | |
| 9 | Stacker | | 1set | 2500mm*1750mm |
| Part b: Auxiliary machines |
| NO. | Machine name | Qty. | Note |
| 10 | Hot&cooling mixer | 1set | 500/1000L or 800/2500L |
| 11 | 380Crusher | 1set | Capacity:350kgs/h |
| 12 | 660Grinder | 1set | Capacity:300-400kgs/h |
FAQ Q1---Where is your factory located?
---Our factory is located in Qingdao City, Shandong Province
Q2---How many employees of your factory?
---We have about 100 staffs including the Production/R&D/Sales/Quality/Warehouse/After-Sales Service etc
Q3---Besides the PVC WPC foam baord Machine,if you also produce PVC Profile/Pipe etc
---No-We only focus on the PVC WPC foam board(sheet) Machine with at least 12 years experience
Q4---How many engineers in service?
---We have 11 professional engineers in service and they all have the passport
Q5---If you will start the machine before delivery?It's free or we need to pay?
---Of course,we must start the machine for your inspection until you satisfy with our machine and it's free.
>>
