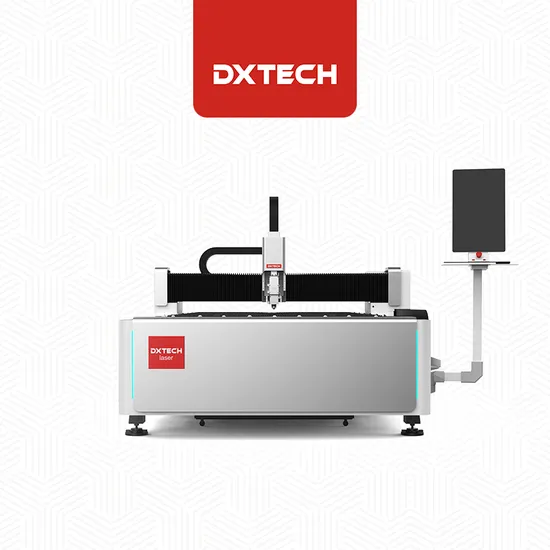

Dxtech 1530 High Power 1000W/2000W/3000W 6000W Metal/Stainless Steel/Copper/Aluminum CNC Fiber Laser Cutting Machine Laser Cutter for Metal Sheet Flatbed

Product Description

This fiber laser cutting machine belongs to our FL series fiber laser cutter for sale. It mainly applicable to and commonly used in the advertising industry. It is suitable for many small and medium-sized enterprises. Feature
--
1. High-strength split plate welding bedIt can be loaded into the general container of 20'GP and 40'HQ and reduce the transportation cost to only 1/3 of the frame container transportation.2. Split frame support tableReduce the load of the bed structure, decrease the impact of material rushing on the bed structure, ensure the accuracy of the machine, and improve the loading weight of the table.3. Subdivided Fluid Domain DustingThe smoke exhaust device automatically senses the laser cutting position to open precise smoke exhaust, closes the non-cutting area for smoke exhaust, fully enclosed smoke control, increases suction, and removes smoke to the greatest extent.
Technical Parameters

Model	DXTECH-1325FL	DXTECH-1530FL
Machine size	4470*2035*1950mm	4735*2251*1950mm
Working area	1310*2520mm	1515*3030mm
Positioning accuracy	±0.03mm	±0.03mm
Repositioning accuracy	±0.02mm	±0.02mm
Max. acceleration	1.5G	1.5G
Laser power	1kW - 2kW	1kW - 2kW
Laser	Multiple options	Multiple options
Focusing method	Auto/manual	Auto/manual
Max. running speed	140m/min	140m/min

Cutting Sample

Product Category

Feedback
Company Profile
FAQ
01What is fiber laser cutting machine?
A:Fiber laser is a special type of solid state laser. Generally, fiber lasers are optically pumped.This is done by coupling the radiation of diode laseers or other fiber lasers into the cladding or the core itself in a direction parallel to the fiber core. In many cases, double clad fibers are used in order to achieve higher output power. What's material can fiber laser cut? All kinds of metal, such as Stainless Steel,Carbon Steel, Mild Steel, Galvanized Steel, Aluminum,
copper, etc.

02What's the max. cutting thickness?
A:Cutting thickness is related to laser power.Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass and other high reflectionsheet metal.

03Do you have CE document and other documents for customs clearance?
A:Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial
Invoice/Sales contract for customs clearance.

04 Payment terms?
A:trade assurance/TT/West Union/Payple/LC/Cash and so on.

05 I don't know how to use after i receive Or i have problem during use, how to do?
A:We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.

06 I don't know which one is suitable for me?
A:just tell us below information1) Max work size:choose most suitable model.2) Materials and Cutting thickness:Power of laser generator.3) Business industries:We sell a lot and give advice on this business line.also provide Door service if you need.

---
