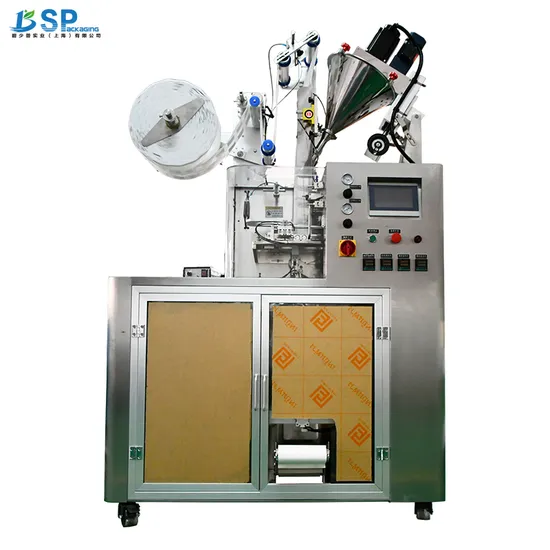

Automatic 3 in 1 Coffee Powder Stick Instant Drip Coffee Sachet Form Fill Seal Wrapping Flow Packaging Packing Filling Sealing Machine

Product Description

Product Description
The procedure for operating a drip coffee packing machine with inner and outer bag capabilities involves several steps. Below is a general outline of the process:
Coffee Filling:
- The machine dispenses the pre-measured amount of ground coffee into each inner bag.
- Ensure accurate measurement and filling to maintain product consistency.
Ultrasonic Sealing of Inner Bag:
- The top of each inner bag is sealed using ultrasonic sealing technology.
- This ensures a secure and airtight seal to preserve the freshness of the coffee.
Outer Bag Placement:
- The filled and sealed inner bags are automatically transferred to the outer bag placement section.
- The outer bag material is fed and positioned to receive the inner bag.
Outer Bag Sealing:
- The top of the outer bag is sealed to encase the inner bag. The sealing mechanism may involve heat sealing
Cutting and Finishing:
- The machine cuts the connected inner and outer bag to separate individual coffee servings.
- The finished product is now ready for packaging or further processing.
Quality Control:
- Regularly monitor the machine's operation to ensure that it is producing consistently sealed and filled bags.
- Conduct periodic checks on the weight and quality of the coffee in each bag.
Packaging and Labeling:
- If required, the bags can be further packaged into larger quantities or boxes.
- Apply labels or printing as needed for branding and product information.
Other optional equipment
The finished bag can be discharged onto a conveyor or to the other machines like check weigher, metal detector, carton packing machine etc.
Depending upon the packing products and customer requirements, below are some optional devices for reference.Heat transfer coding machineRibbon coding machineNitrogen making machine7KW air compressor0.5m³ air tank
Detailed Photos
Product Parameters

Model	BSP-L188
Measuring range	5-12g
Inner bag size	L50-75mm W120-180mm
Outer bag size	L150-220mm W85-150mm
Packing speed	30-45 bags/min
Air consumption	0.6m³/min
Air pressure	≥0.5Mpa
Voltage	AC220V 50Hz
Power	3.7KW
Dimension	L1345*W779*H2262mm
Weight	650KG

Certifications
Packaging & Shipping

Package dimension	L1500*W950*H2200mm, 3.2CBM
Package weight	850KG

Our Advantages
Payment terms
Choose the machine type → Goods delivery :(FOB,CIF,CFR,EXW) → Payment term :30% advance payment as for ordering the machine (or 100 % payment that can save time ) → Confirmed the machine requirement → Based on your requested to producing machine→ Though video chat or send machine picture or directly come to inspection in our factory → Pay the rest of balance 70% → Arrange the shipment .(If need more technical support ,please contact our services )
After Sales Service:1.Guaranty: One Year.2.One set of consumable accessories will be provided with the machine.3.Any question, you can mail/call us at any time. And our most experienced engineers are assigned to give consulting service, and always available for dispatching abroad.4.All spare parts are always available for delivery.5.Manual is in English.
Installation/TrainingIf really don't know how to install and operate after showing the video and telephone instruction, you can ask for installation from us. It must be after shipment till the machine has arrived and factory must be ready equipped with all necessary requirements before booking installation. Our engineers will come to the site for the complete and final installation. During the installation session, a training course will be provided to our customers about operation and maintenance procedure. The following costs should be paid by the buyer, including engineer's all local transportation, accommodation, and air tickets (round trip)Company Profile
BSP PACKAGING Co., Ltd. is specialized in R & D, production and sales of particle packaging machine, powder packaging machine, pillow packaging machine, candy packaging machine, paste packaging machine, liquid packaging machine, bag packaging machine, weighing filling machine, paste body (liquid) filling machine, powder filling machine, electronic scale weighing packaging machine, vibrating plate counting high-speed packaging machine, hardware fastener packaging machine Hardware parts packaging machine, electronic parts packaging machine, injection parts packaging machine, shrink packaging machine, vacuum packaging machine, etc., as well as automatic production line manufacturing, unmanned chemical plant design and transformation, non-calibration equipment. The company operates in strict accordance with ISO90001/2000 international quality system. Products through the EU CE certification, with the People's Republic of China import and export qualification certificate, products widely sold at home and abroad.
The company was founded in 2016, the purpose of the company is to create assembly line production, reduce manual intervention, improve production efficiency. According to customer product and production planning requirements and site planning, design and layout for customers to tailor the production line according to the program. All equipment keeps pace with The Times and constantly innovates.
The company set up automation equipment design center, international trade center, automation integrated control research and development center, to provide support for the development and application of new products and new technologies.
The company adheres to the forward-looking, strategic development idea, and strictly controls the quality. Quality is the primary standard of production inspection, to maintain consistent quality. Together with high-quality design, research and development, production, sales, after-sales service team, with superb technology to stand out in the fierce market competition. With one to one personalized service for each customer independent design and development of packaging equipment suitable for customers' own needs, for customers to maximize cost savings and improve efficiency, the company's sincere business philosophy ultimately win the trust of our customers. With customers to establish mutual respect, complementary advantages, create brilliant long-term friendly partnership.
We are always eager for talents. If you are interested in the packaging machinery industry, as long as you have the ability, there is a stage that belongs to you. We sincerely welcome people with lofty ideals to join our big family. In the future, we will provide more diversified and broader development platforms, and create a working atmosphere of harmony, unity and healthy competition.

---
