Product Details
Product Description
Product Description

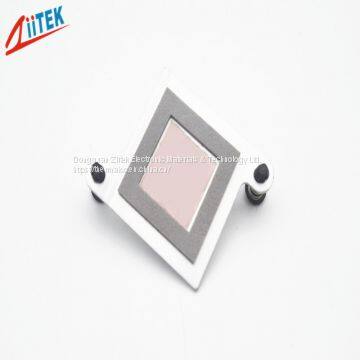

China supplier Low Melting Point 0.95w LED controller PCM thermal conductive phase change pad materials
The TIC™805P Series is low melting point thermal interface material. At 50℃, The TIC™805P Series begins to soften and flow, filling the microscopic irregularities of both the thermal solution and the integrated circuit package surface, thereby reducing thermal resistance.The TIC™805P Series is a flexible solid at room temperature and freestanding without reinforcing components that reduce thermal performance.
The TIC™805P Series shows no thermal performance degradation after 1,000 hours@130℃,or after 500 cycles, from -25℃ to 125℃.The material softens and does not fully change state resulting in minimal migration (pump out)at operating temperatures.
Features
0.024℃-in² /W thermal resistance
Naturally tacky at room temperature, no adhesive required
No heat sink preheating required
Applications
High Frequency Microprocessors
Notebook and Desktop PCs
Computer Serves
Memory Modules
Cache Chips
IGBTs
Typical Properties of TIC™805P Series
|
Product Name
| TIC™805P
|
Colour
| pink
|
Composite Thickness
| 0.005" (0.13mm)
|
Specific Gravity
| 2.2 g /cc
|
Work Temperature
| -25℃~125℃
|
phase transition temperature
| 50℃~60℃
|
Setting temperature
| 70℃ for 5 minutes
|
Thermal conductivity
| 0.95 W/mK
|
Thermal lmpedance @ 50 psi(345 KPa)
| 0.024℃-in²/W
|
>>
