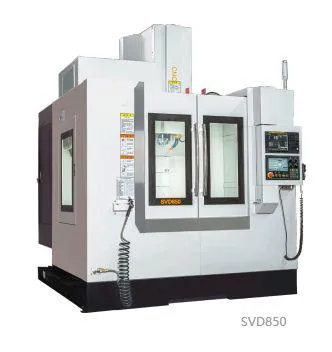

Vertical Machining Center Sv, New Upgraded Vertical Machining Center.

Product Description

Product Description
New upgraded vertical machining center The best choice of machining performance and range in its class
The technical team in Taiwan, which belongs to Xinuo Precision Industry, combined with the leading Japanese design concept of vertical machining center.design concept in Taiwan, the prototype design, process, assembly, commissioning.After continuous optimization and iteration, the new generation of SV series vertical machining center is launched.
Product Parameters

		SVD650	SVD850	SVD1060	SVD1160	SVD1270	SVD1470
Worktable size	mm	400*850	500*1000	600*1200	600*1360	700*1400	700*1600
T T-slot size	mm	3-18*100	5-18*100	5-18*100	5-18*100	5-18*125	5-18*125
Max. load bearing of worktable	kg	400	600	800	900	1000	1100
3 axis Travel X/Y/Z	mm	650/400/500	850/520/560	1000/620/620	1160/620/620	1200/700/700	1400/700/700
Distance from column to spindle center	mm	451	592	663	663	766	766
Distance from table surface to spindle nose	mm	100-600	120-680	150-770	150-770	150-850	150-850
Spindle hole taper		BT40	BT40	BT40	BT40	BT50	BT50
Spindle power	kw	7.5/11	7.5/11	11/15	11/15	11/15	11/15
Max. spindle speed	rpm	12000	12000	12000	12000	10000	10000
Max. feed speed	mm/min	12000	12000	12000	12000	12000	12000
Rapid feed speed	m/min	48/48/32	48/48/32	36/36/24	36/36/24	24/24/20	24/24/20
Tool magazine capacity	T	20	24	24	24	24	24
(T-T) Tool change time	S	2.5	2.5	2.5	2.5	3.5	3.5
Positioning accuracy	mm	0.008	0.008	0.008	0.008	0.01	0.01
Re-positioning accuracy	mm	0.004	0.004	0.004	0.004	0.005	0.005
Machine dimension	mm	2100*2300*2750	2250*2700*2820	3570*2500*2930	3770*2500*2930	4550*2955*3320	4850*2955*3320
Machine weight	kg	4100	6500	8500	8700	9700	10000

Company Profile
Who We Are?
Founded on March 30, 2016, HANMING aims to provide customers with excellent products and services and industrial complete equipment solutions.
HANMING has always been standing in the perspective of every customer to deal with problems and ensure the timely and efficient handling of problems. Our salesmen are experienced senior marketing engineers who have been working in the industry field for many years, and our inspectors are technical engineers, which ensure our professionalism. Our products are mainly metal cutting machine, metal forming machine and other industrial equipment.
What Do We Can Do?
The core competitiveness of HANMING is having a strict quality management system and a team that can provide excellent services. We are familiar with the machine tool industry in China and know the positioning of products in various factories. We will select the most suitable machine tools for customers and ensure that after the completion of the machine tool, we will send quality control team to each factory for inspection to ensure that the machines delivered to customers are high-quality products that have been inspected. Our inspectors are also after-sales service personnel to ensure that every after-sales service problem can be timely communicated with each factory and give timely feedback.
Our Aim:
Relying on the keen market insight, HANMING makes forward-looking decisions on the changeable market and actively deals with and overcomes the difficulties encountered by the enterprise in various periods. Today, a steady and pragmatic team leads Hanming forward to open up a new world in the industrial export industry.

---
