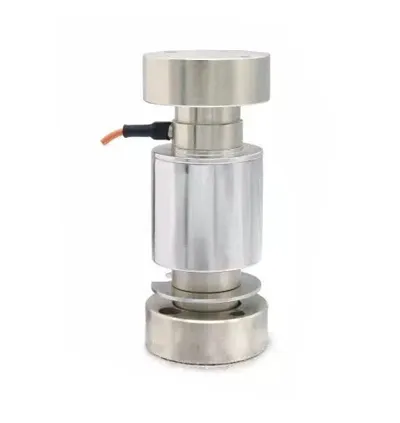

Weighbridge Load Cell Truck Scale Load Cell Weighing Sensor

US$80.00
1-9 Pieces
US$50.00
10+ Pieces

Basic Info.

Model NO.
CM
Out-Wire
4-Wire
Output Signal Type
Switching Type
Feature
Capacity: 10t--50t
Production Process
Material: Alloy Steel
Material
Hzgh
IP Rating
IP67
Certification
OIML
Customized
Customized
OIML
Laod Cell
CE
Load Cell
Weighing
Weiging Load Cell
Used
Truck Scales
Transport Package
Package
Specification
OIML CLASS
Trademark
HZGH
Origin
China
HS Code
84239000
Production Capacity
5000PCS

Product Description

Technical Parameter
Rated Load10t,20t,25t,30t,40t
Sensitivity2.0000±0.001mV/V
Total Error±0.02%F.S
Creep(30minutes)±0.02%F.S
Recommended Excitation Voltage5V~18V(AC or DC)
Maximum Excitation Voltage24V(AC or DC)
Zero Balance±1%F.S
Input Impedance380±5Ω
Output Impedance350±2Ω
Insulation Impedance≥5000MΩ
Safe Overload150%F.S
Ultimate Overload200%F.S
Operating Temperature Range(-30~+70)ºC
Compensated Temperature Range(-20~+60)ºC
Temperature Effect On Load±0.02%F.S/10ºC
Temperature Effect On Zero±0.02%F.S/10ºC
ConstructionAlloy Steel
Protection ClassIP67&IP68
CitationGB/T7551-2008/OIML R60
Mode of ConnectionInput+:Red
Input-:Black
Output+:Green
Output-:White

*Name: weighing bridge load cell
*modl: CM
*Capacity:10t to 40t.
Technical Parameter
Rated Load10t,20t,25t,30t,40t
Sensitivity2.0000±0.001mV/V
Total Error±0.02%F.S
Creep(30minutes)±0.02%F.S
Recommended Excitation Voltage5V~18V(AC or DC)
Maximum Excitation Voltage24V(AC or DC)
Zero Balance±1%F.S
Input Impedance380±5Ω
Output Impedance350±2Ω
Insulation Impedance≥5000MΩ
Safe Overload150%F.S
Ultimate Overload200%F.S
Operating Temperature Range(-30~+70)ºC
Compensated Temperature Range(-20~+60)ºC
Temperature Effect On Load±0.02%F.S/10ºC
Temperature Effect On Zero±0.02%F.S/10ºC
ConstructionAlloy Steel
Protection ClassIP67&IP68
CitationGB/T7551-2008/OIML R60
Mode of ConnectionInput+:Red
Input-:Black
Output+:Green
