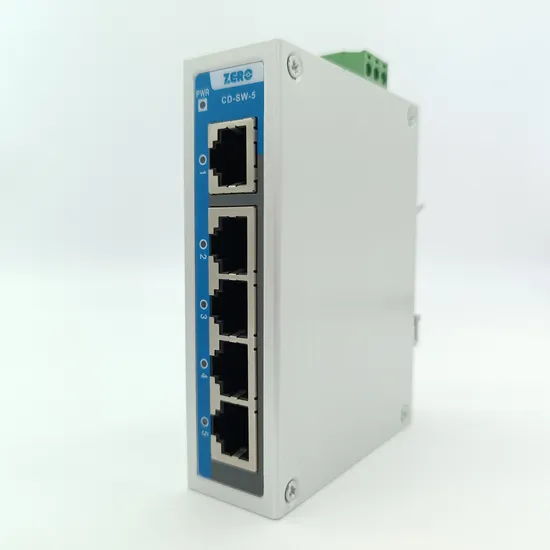

Industrial 5-Port Ethernet Switch for Network Solutions

Product Description

Industrial 5-Port ethernet switch for Network Solutions Product Description
This 100 Mbps non-gateway industrial Ethernet switch is designed specifically for industrial environments. It provides multiple 100 Mbps Ethernet ports and uses DIN-rail mounting, making it suitable for various application scenarios. The hardware is designed to be fanless and low-power, and it has passed stringent industry-standard tests, ensuring stable operation in industrial environments with high EMC requirements.
The switch is widely used in fields such as rail transit, smart cities, safe cities, new energy, and intelligent manufacturing. It offers multiple functions, including loop detection, storm control, one-click VLAN, and flow control, which can be configured via DIP switches. This product provides users with an efficient and reliable network solution. Product Parameters

Standards and Protocols	10BaseT, abide by IEEE 802.3 100BaseT(X), abide by IEEE 802.3u Flow control, abide by IEEE 802.3x
Port	10/100Base-T(X), RJ45, full/half duplex mode, MDI/MDI-X automatic detection
Pilot Indicator	Power indicator, port indicator
Transmission Method	Storage and Forwarding
MAC Address	2K
Backplane Bandwidth	1G
Switching Delay	<10μs
Power	12~48VDC or 24VAC, three core and 5.08mm pitch terminal, support anti-reverse connection,support built-in overcurrent protection of 3.0A
No-load Power Consumption	0.4W@24VDC
Full-load Power Consumption	1.0W@24VDC
Protection Level	IP40
Ambient Temperature (Operating, Storage)	-40---75ºC; -40---85ºC
Relative Humidity	5%~95%(No condensation)
Industry Standard	IEC 61000-4-2 (ESD) Air discharge:±8kV Contact discharge:±6kV IEC 61000-4-4 (EFT) Power:±2kV Ethernet port:±1kV IEC 61000-4-5 (Surge) Power:Common-mode input±2kV Difference-mode input±1kV Signal:Common-mode input±2kV Difference-mode input±1kV
Shock	IEC 60068-2-27
Free fall drop	IEC 60068-2-32
Vibration	IEC 60068-2-6
Authentication	CE
Quality Guarantee	3 Years
MTBF	510465 hrs

Certifications
Company Profile
Packaging & Shipping
FAQ Q: Whether some samples can be provided?
A: Yes, We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q: What is your terms of payment?
A: T/T 70% as deposit, and 30% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q: How about your delivery time?
A: Generally, it will take 5-7 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

---
