New Sumore Surface Grinding Machine 500X250mm Table China Equipment Machinery Tool Grinder

Product Description

Product Description

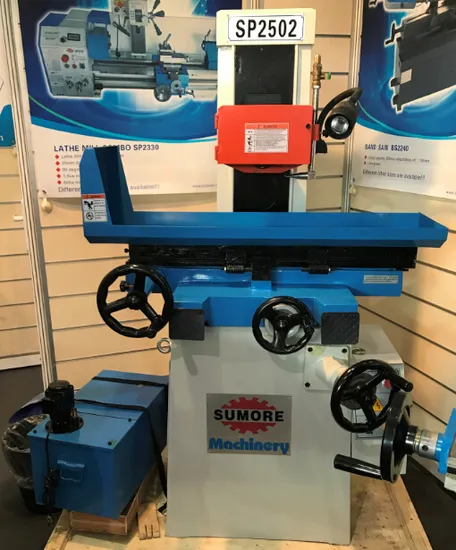

Small manual surface grinder machine surface grinding machine SP2508 Factory vertical surface grinders surface grinding machine manufacturers metal hydraulic surface grinder machine belongs to most popular economic manualsurface grinder machine. It is small in size and delicate in design. This surface grinder machine is made in China, but with same quality of Japan surface grinder. The main features are as below
Adopt the exceeding precise class7 (P4 level) ball bearing for spindle. Surface Grinder(hydrulic grinding machine) is a good quality metal surface grinding machine, which is made in China, but have similar quality as Japan surface grinder. It has good design and high quality.
Quick details
1.Table size:560*260mm
2.Distance from tablesurface to spindle center:450mm
3.Wheel size:200*20*31.75mm
4.Spindle motor:1.5KW
Featurs/Advantages
High rigidity & high sealing ensure no vibration- Accuracy
Digital size controller -Longer machining Accuracy
Simple operation
Suit for fine Grinding, Lapping and Polishing etc
Table size 600X300 economic
High quality and reasonable prices
Could work with many different material
COLOR AND BRAND could be custimized
Pre, main and post load position can be controlled by simple setting.
Operator gets more space for loading from upper wheel Swivel device. It can be equiped with semi or full automatic Loading or Unloading device.

Product Specifications

Model SP2508 Max. workpiece to be Ground(L*W*H) 520*250*490mm Distance from Table to Surface to Spindle Center 450mm Slide way V-type rail with Steel-ball V-type rail with Stell-ball 200kg Table Size(L*W) 560*260mm Number of T-slot 14*1mmxn Cross Feed on Handwheel 0.02/Graduation 4/revolution speed of working table 3-20m/min Vertical Feed on Handwheel 0.01Graduation 2/revolution Wheel Size(dia x width x bore) 200*20*31.75mm Spindle speeds 50Hz 2850rpm(0-6000) Spindle motor 1.5kw Hydraulic station motor 1.5kw Working Pressure 3Mpa Hydraulic capacity 18L/min Tank capacity 80L Coolant Pump 0.04kw Paraller level 300:0.004mm Gross/Net Weight 1350/1250kg Packing size 1750*1350*1960mm

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs , UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!

---
