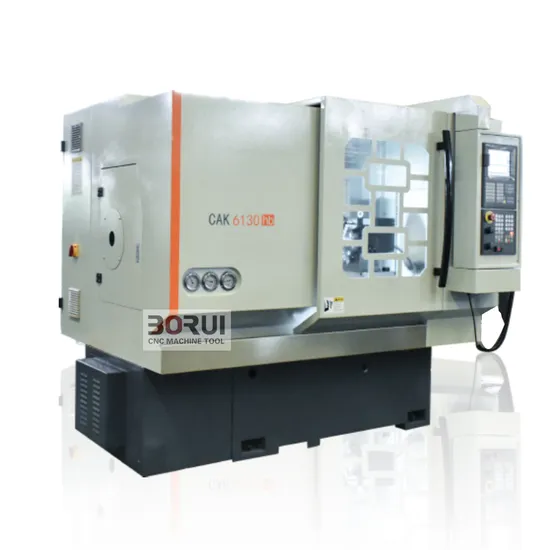

Cak6130hb Combination CNC Lathe CNC Milling Machine Cast Iron Frame

Product Description

CAK6130HB Combination CNC Lathe CNC Milling Machine Cast Iron Frame
Product Application

Product main technical specification:

SPECIFICATIONS	CAK6130HB
Max. Swing Diameter over Bed	520mm
Max. Length of work piece (Distance between centers)	234mm
Max. Swing Diameter over Tool Slide	340mm
Diameter of Spindle Through Hole	55mm
Taper of Spindle tapered hole	Morse 6#
Range of Spindle Speed	100-4000rpm
Max. Lateral Travel (X-Axis)	268mm
Max. Longitudinal Travel (Z-Axis)	234mm
Max. Vertical l Travel (Y-Axis)	155mm
Power head speed	3000r/min
Maximum drilling diameter of power head	12mm
The maximum tapping thread of the power head	M5
Vertical and horizontal movement pulse equivalent	0.001mm
Vertical and horizontal maximum rapid traverse speed	X/Z/Y : 15/20/6 m/min
Pitch Range of Thread Cutting	0.2-5mm
Main Motor	3.7KW
Power of Cooling Pump	125w
External Dimensions of Lathe	2055x1500x1720mm
Net Weight of Lathe	1750kg

The main feature :
1. Form of workpiece clamping:1)Three-jaw chuck 2)Spring collect(optional).
2. The automatic feeding rack can be selected optionally according to user requests.
3. Its spindle is supported by high-precision rolling bearing, which realizes high turning precision, the carriage in vertical and horizontal direction is driven by high-precision ball screw, which has satisfactory dynamic performance and high positioning accuracy.
4. The machine tool adopts cast iron with the hardness of more than HRC45 after VHF hardening as the material; ensure the machining precision stably in a long-term manner.
5. Considering vibration during turning, the base of high strength and widened extension unit is designed, which is particularly suitable for powerful turning.
Product Details
packing shapingFor machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Information 1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
