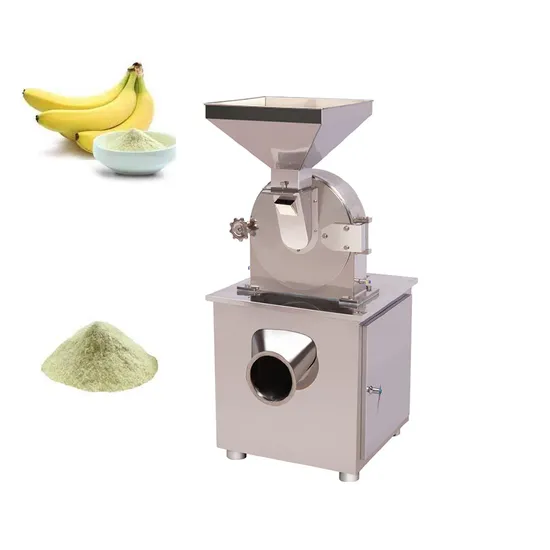

Stainless Steel Multi Spice Salt Sugar Grinder Grain Grinding Machine

Product Description

Fine powder Stainless Steel Stone Spice salt sugar Grinder grain Milling Machine
Introduction
The spice machine uses relative movement of the active hammer,grind the target material.the size of powder granules can be achieved by changing of screen.the machine has the features of easy structure ,solid,stable running and good efficiency. It can crush any feed. It is made out of stainless steel. "GPM" standard.

Application
This grinder machine can be mainly used for grinding various grains, dry spices and herbs, herbal medicines containing roots and branches, chemical materials, and some other hard and brittle materials.
Such as: grains,roasted coffee bean,spices,herbs,salt,sugar,pepper,walnut shells,seed,etc.After grinding, fine powder can be made.
Working Method
(1) The machine uses the relative movement between the active fluted disc and the fixed fluted disc to impact, grind and crush the target materials.
(2) The size of granules can be achieved by changing of the screen.
2. Introduction
(1) The machine has the fea-tures of easy structure. Solid, stable running and good efficiency.
(2) The crushed ma-terial is discharged directly from the grinding chamber of the main frame.
(3) In addi-tion, the whole machine is, made of stainless steel, with smooth inside walls to and avoid powder accumulation on the inside walls.
(4) The machine are in accordance with national require-ment, achieving "GMP" standard.
Notes:
1,According to your different material and also the mesh you want to crusher,the more fine powder you crush,the less capacity,hope you can understand.
2,For example,if you want to get 120mesh powder,the capacity will be 120kg\hour,if you want to get 12mesh powder,the capacity will be 1500kg\h.
Specification:

Model	WSBX-20	WSBX-30	WSBX-40	WSBX-60
Capacity(kg/h)	30-150	50-300	80-800	120-1500
Speed of principal axis(r/min)	4500	3800	3400	2600
Size of input granules(mm)	< 6	< 10	< 12	< 15
Fineness of products (mesh)	12-120	12-120	12-120	12-120
Power(kw)	4	5.5	7.5	15
Weight(kg)	250	320	450	600
Overall size (L× W× H) (mm)	550× 600 × 1250	600× 750 × 1450	750× 900 × 1550	950× 1000 × 1850

Contact details:
Grace
Mobile +86 17737312676

---
