Fully Automatic Cutting Machine AAC Block Production Line

Product Description

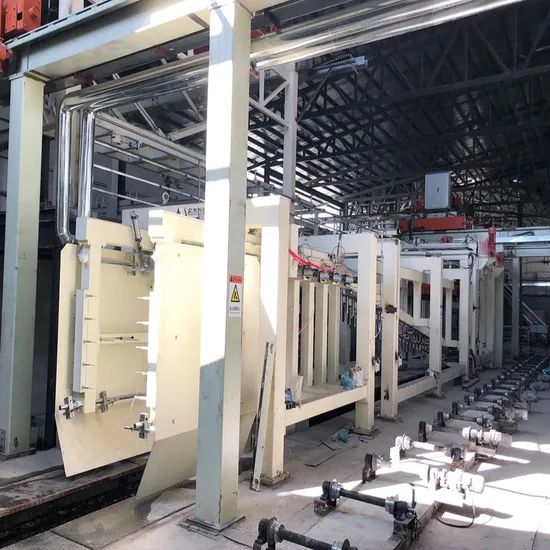

Upward Opening AAC Autoclave machine / AAC Sand Lime Block / AAC Fly Ash Block Autoclave

1. Product Description:
1)Autoclave is key equipment which has a widely application in building material factory to autoclaved cure different kinds of building materials.
2)The autoclave is the large pressure vessel that can steam the pressurized bricks or normal bricks which is made from aerated concrete blocks, sand and pulverized fly ash, and then complete the reaction of Cao-SiO2-H2O.
3)the autoclave is also widely used in other productions that need to be steamed with high pressure . It is also used in areas of chemical, textile, wood, Glass, Brick, metallurgy, Rubber, military industry. Convenient operation, security and reliable are its advantages.
2. Autoclave structure
The main parts of autoclave are autoclave door ,body apparatus, tank cover device, the door swing device, hand reducer, safety interlocks, bearings, insulation,,sealing devices, plumbing valves and meters, etc., also attached with drainage and electric control devices. Various structural designs and manufacturing can be safe and reliable, also can ensure the autoclave more stable in performance.
3. Process:
1) After welding kettle door, it must proceed with annealing heat treatment.
2) Polish toothed cutter of flange of autoclave body, and carry out magnetic particle testing.
3) Use double scale container board, and ensure the longitudinal joint of each section.
4) Carry out the physical and chemical test (stretch, impact), ensure its strength.
5) Welds are 100% X-ray detection, then carry out hydraulic test of 2.1MPa after passing. The whole process is complete inspected by CSEI factory inspection, and leave factory after stamp and signature .
4. Autoclave advantage
1. Longer service life.
2.To kettle cover - head butt, head - butt welding puzzle, kettle - kettle body butt welding flange ring to be a 100% inspection with 100% annealing.
3.Using automatic welding processes.
4.Advanced design, pipeline operations, stable quality and high efficiency.
5. Products can also be segmented to adapt to users' needs; good overall package, short installation period, low investment.
6. Best service and remote technical guidance available.
What is Autoclave Aerated Concrete (AAC) ?

Autoclaved aerated concrete is a kind of lightweight porous building construction
material. It takes cement, lime, slag, fly ash, sand, aerated additive( aluminium powder) as raw
materials. The aerated concrete blocks are made after production processes of
fine grinding, batching, casting, cutting, autoclaved curing and milling. There are
lots of uniform small air holes inside the blocks. The special structure ensure it
has the advantages of lightweight, good insulation effect and processable.
Advantage of AAC

1. AAC can be produced with different of sizes which from standard blocks to large reinforced panels
2. Excellent thermal insulation
3. Excellent lightweight
4. High compressive strength
5. High dimensional accuracy
6. Great acoustic insulation
7. High fire resistance
8. Termite resistance
9. High working ability
Why choose the AAC block machine from MINGJIE ?

1. Changzhou MINGJIE Building Material Equipment Manufacturing Co.,Ltd was establishes over 30 years, By the past two decades ,MINGJIE is accredited with ISO9001 Quality Management System and ISO14001 Environment Management System and won 'Standard Quality Management Enterprise ',Provincial quality trusted enterprise " ,'Contract and Credit Stressing Unit 'honors chronologically ,and it is the first title of 'China Well-Known Trademark'.

2. MINGJIE adhere to the philosophy of "Technology -led ,Quality-oriented ,Management-based ,Customer-benefited " .

3. MINGJIE stable development in motherland and great achievements,overseas come after our reliable quality ,strong technical strength ,advanced marking network ,and perfect after-sales services.
