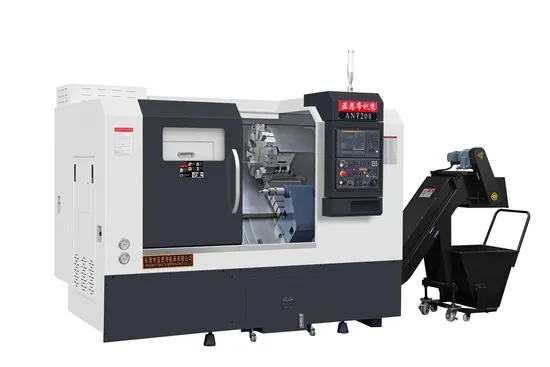

Precision CNC Lathe Machine A2-6 Spindle for Custom Projects

Product Description

Basic Info

Model NO.	ANT208		Process Usage	Metal Processing
Movement Method	Point to Point Control		Control Method	Closed-Loop Control
Numerical Control	CNC/MNC		Processing Precision	0.002~0.01(mm)
Performance Classification	Economical CNC Machine Tools		Certification	CE,
Condition	New		Tailstock Form	Hydraulic Tailstock
Lubrication Form	Grease Lubrication		Hydraulic System	3 Channels
Max. Live Tool Speed	4000rpm		Product Name	CNC Lathe
Keyword	Lathe Machine		Key Word	Automatic CNC Lathe Machine
Transport Package	Packaged Into Wood Carton		Specification :mm	2550 *1950 *1980
Trademark	ANTJC		Origin	China
Production Capacity	420

Packaging & Delivery

Package Size	2550mm * 1950mm * 1980mm
Package Gross Weight	4300.000kg

Product Description
Introducing the High-Speed Driven Machine Tool Turret with Hydraulic Tailstock, a CNC Slant Bed Heavy Turning Lathe designed for unparalleled performance and precision.
1,High precision spindle
The machine tool features a high-rigidity spindle, expertly engineered for exceptional durability and precision. This guarantees minimal spindle beating and superior true roundness.
<3um
2,High efficiency machining
With a spindle speed maxing out at 4500 rpm, and X, Z axis speeds reaching 30 m/min, our technology integrates seamlessly with automatic feeding systems
to achieve outstanding speed and efficiency in operations.
3,The bed structure
Featuring a 45-degree inclined bed structure, it offers high rigidity and smooth chip evacuation, with a compact and aesthetically pleasing design. Crafted with an all-stainless steel door,
it ensures maximum reliability and durability.
4,High precision feed
The feed axis is driven by a servo motor, paired with Taiwan Yintai's high-precision ball screw, pre-tensioned at both ends.This design guarantees exceptional machining precision,
long-term accuracy retention, and consistent feed shaft repeatability with positioning accuracy of <±1um, ensuring a surface gloss of/0.8
5,Rotary turret
Equipped with a high-precision hydraulic turret, it delivers seamless speed and accuracy, minimizing processing time. The hydraulic tailstock's adaptable design significantly boosts shaft parts processing accuracy and efficiency.
6,Super cutting
Experience unparalleled cutting with high-speed, high-precision hydraulic rotary cylinders, precision collet, and robust power chuck configuration, enhancing material toughness
for heavy and powerful cutting capabilities.
7,New Generation System
Our new generation system elevates machine tool precision and stability, complemented by a high-power cooling pump that significantly enhances cutting and cooling performance. This results in superior part quality and machining efficiency.
Company Profile
Company Profile
Dongguan Ya endi Machine Tool Co., Ltd. stands as a beacon of technological innovation and excellence, firmly established as a high-tech enterprise dedicated to the meticulous research and development, superior sales of CNC machine tools, and the proficient design, installation, and commissioning of cutting-edge automation projects. Embracing a comprehensive approach, it harmoniously integrates the development, design, production, sales, and service of CNC machine tools and automation processing, ensuring a seamless experience for its clientele. Nestled in the heart of the Daban Di Industrial Zone, Humen Town, Dongguan City, Guangdong Province, China, the company offers an impressive array of products. These include cutting-edge 5-axis linked CNC machine tools, advanced power tool turret CNC lathes, precision-driven turret tailstock CNC lathes, and inclined bed multi-tool CNC lathes. Additional offerings comprise the 5-axis 4-linked turning-milling compound CNC lathes, the remarkable 40,000 RPM 5-axis 4-linked compound CNC lathes, and sophisticated automated production lines. These state-of-the-art solutions are meticulously crafted to serve industries such as automotive, electronics, aerospace, military, optoelectronics communications, automotive and motorcycle, home appliances, lighting, fishing gear, and jewelry. They deliver unparalleled efficiency and high precision in parts machining, garnering the admiration and trust of an extensive clientele. Ya endi is fueled by passion and creativity, committed to delivering quality and unmatched service, with customer satisfaction as our ultimate aspiration.
Corporate Philosophy: At the core of our operations is our unwavering belief in 'Honesty, Cooperation, Pioneering, Innovation'. This philosophy drives us to forge strong bonds with our clients, innovate tirelessly, and lead with integrity.
Our Guiding Principles: We are 'Human-oriented', emphasizing a workplace that values and respects each individual. Our commitment to being 'Efficient and High-Quality' ensures that our processes are streamlined and our products are top-tier. We focus on 'Continuous Improvement', always striving to enhance our methods and outcomes. Ultimately, our drive for the 'Pursuit of Excellence' propels us to exceed expectations and set new standards in our field.
Deta Product Parameters

Experience the Precision of Our New ILS Display Technology
Product Parameters

Category	Product Name	Model
Turning and Milling Machine Tool	Dual-spindle Dual-turret Turning and Milling Machine Tool	ANT308SDYY
Turning and Milling Machine Tool	Dual-spindle single-drive tool turret orthogonal Y-axis turning-milling compound machine	ANT308SDY
CNC lathe Milling Machine	Dual-spindle Dual-turret Turning and Milling Machine Tool	CNC46-SSTD
CNC Lathe	Dual-spindle Lathe With Double Gang Tool Carriers	X46-SST
CNC Lathe	Dual-spindle Dual-s turret lathe	X46-STD
Turning and Milling Machine Tool	Dual-Spindle Driven Tool Turret Lathe(Without Y-axis)	ANT308SD
Turning and Milling Machine Tool	Vertical Y-axis combined turning-milling machine (servo tailstock version)	ANT208DY
Turning and Milling Machine Tool	Orthogonal Y-axis Turning and Milling Machine Tool	ANT308DY
Turning and Milling Machine Tool	Orthogonal Y-axisTurning and Milling Machine Tool	ANT308DY
Turning and Milling Machine Tool	4+4 Driven Tool+ Normal Turret Turning and Milling Machine Tool	CNC46-T/4+4
Turning and Milling Machine Tool	Driven Tool Turret Turning Tailstock Lathe Without Y-axis(Hydraulic Tailstock Version)	ANT208D
Turning and Milling Machine Tool	Driven Tool Turret Turning Tailstock Lathe Without Y-axis(Hydraulic Tailstock Version)	ANT308D
Turning Machine Tool	Turning Machine Tool with normal turret(Hydraulic line gauge tailstock)	ANT208
CNC lathe Machine	CNC Lathe(Without Tailstock)	T52-T
Turning Machine Tool	Turret lathe with a large processing diameter and standard tool turret(Hydraulic line gauge tailstock)	ANT415
CNC lathe Machine	Turret lathe with a large processing diameter and standard tool turret(servo line gauge tailstock)	ANT415
CNC lathe Machine	Large travel heavy-duty CNC lathe with four-way tool post and large diameter turning capacity	CJK6180X6000
CNC lathe Machine	Rapid Tool Change CNC Lathe	X46-T

Explore Our State-of-the-Art Equipment Display
Installation Instructions

Project			Unit	Specifications
Work Ability	Maximum turning diameter on the bed			Ф560
	Maximum turning diameter			Ф400
	Maximum drilling diameter			Ф50
	Maximum turning length			460
Maximum stroke	X:direction			250
	Z:direction			500
	Y:direction			/
Spindle box	Spindle speed range		r/min	0-4000
	Main motor power		Kw	11KW
	Spindle head model			A2-6
	Spindle through-hole diameter			Ф62
	Diameter of the through rod material			Ф52
	Spindle front shaft diameter size			Ф100
	Spindle center to bed height			350
	Height from spindle center to ground			1015
Fast forward speed	X:direction		m/min	18
	Z:direction			18
	Y:direction			/
12-Station Hydraulic Servo Turret	Outer circle knife square size			25*25
	Maximum boring bar diameter			StandardФ40;
	Straight knife holder	Square knife seat	a	1
		Round knife holder		4(Diameter¢40)
Chuck	Hydraulic hollow		Inch	8
Machine tool dimensions (length × width × height)				2550×1850×1980
Machine tool weight	Net weight			4200(With chip discharge mechanism)

group photo of the visit

Packaging and delivery
Packaging Details: Proudly adhering to international heat treatment standards, our products are meticulously packaged and exported using robust wooden pallets to ensure safe transit across the globe.
The workbench and guide surface are treated with a premium anti-rust oil, ensuring long-lasting protection and maintaining pristine condition.
Each product is vacuum-sealed, maximizing the safeguarding against environmental factors during transport.
This method effectively prevents both moisture infiltration and the onset of rust, ensuring the product's integrity upon arrival.
Exhibition
FAQ
Q1: How to choose the most suitable machine?
Answer: Please tell us your specifications, and we can choose the best model for you, or you can choose the exact model. You can also send us the product drawings, and we will choose the most suitable machine for you.
Q2: What are the main products of your company?
Answer: We specialize in the production of various machines, including CNC lathes, turning-milling compound lathes, twin-spindle CNC lathes, twin-spindle turning-milling compound lathes, etc.
Q3: Where is your factory located? How can I visit there?
Answer: Our factory is located at No. 3, Daban Second Road, Daning Village Committee, Humen Town, Dongguan City, Guangdong Province, China, postal code: 523877. We warmly welcome all new and old friends to visit our factory. In addition, if needed, we can pick you up at the station or airport.
Q4: What are your trade terms? Answer: Both FOB and CIF are available.
Q5: What are the payment terms? Answer: T/T, 30% deposit when ordering, and the remaining 70% before shipment; before you pay the balance, we will show you photos and online videos of the products and packaging.
Q6: Can you provide customized machines? Answer: Yes, we can design and manufacture according to your specific requirements.
Q7: Do you have professional engineers? Answer: Yes, we have professional engineers and designers.
Q8: Does your company provide professional training? Answer: Yes, we provide training and teaching or video teaching.
Q9: How do you provide after-sales service? Answer: We usually provide technical support online through WeChat or WhatsApp. Customers describe the problem and send videos and pictures, our technical staff will help to solve the problem, during the warranty period, if the parts are damaged due to non-human factors, we will send new replacement parts for free.
Q10: What is your delivery time? Answer: Generally, it takes 30 to 60 days after receiving your deposit. The specific delivery time depends on the goods and quantity of your order.
Q11: Do you test all goods before delivery? Answer: Yes, we have conducted 100% testing before delivery.
Q12: Can you provide product samples? Answer: Yes, we can provide samples according to the drawings, but the customer needs to pay the sample fee.
Q13: Which industries are your machines used for? A: Automotive parts industry, electronic equipment industry, home appliance industry, mold accessories, photoelectric communication, aerospace, automotive and motorcycle, etc.

---
