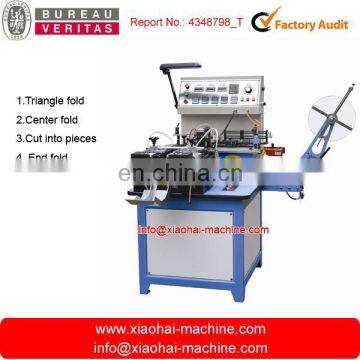

computerized woven label machine
Characteristic:
MH-900 type label shearing and folding machine is of a compact structure and simple operation and an automatic sliding path of label. It is able to shear and fold 5 types of trademark by only replacing the mold. It adopts digital circuit to drive the main frame to realize soft start,fixing high performance photo-electric system. It can auto tell mark. It will auto-stop at no-mark or disused label. Furthermore, the system holds the feature of adjustable label length without any tool and can be separately fitted with an electronic eye system upon the need of users. This system is mainly used for printing labels and cutting and folding those without push-line.
Advantages:
1.Triangle fold
2.Center fold
3.Cut into pieces
4. End fold
5. Length fold
Main Technical Variables:
MODEL
| MH-900
|
Cutting length
| 15-160mm
|
Cutting width
| 10-75mm
|
Cutter type
| Cold Cut, Hot Cut
|
Cutter speed
| 30-200/min
|
Power supply
| Single-phase 220V 50-60Hz
|
Electricity consumption
| 1.8kw
|
Horsepower
| 1/2Hp
|
Weight
| 295kg
|
Output packing
| 1100×950×1620mm
|
