Turning Lathe Precision Metal Bench Mini Lathe Machine

Product Description

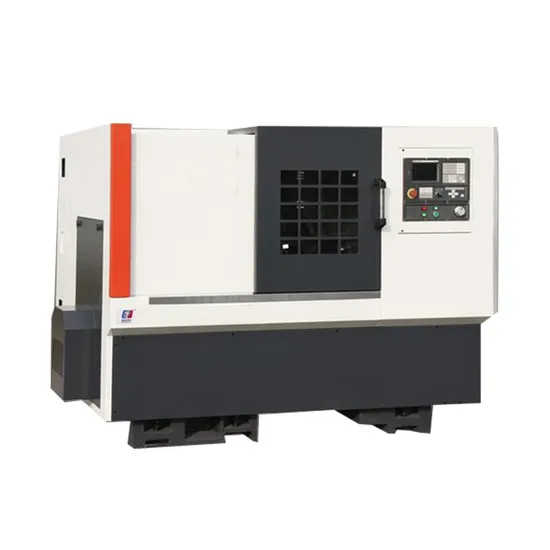

Slant Bed CNC Lathe
Slant bed and Linear guide way CNC lathe
The machine is The machine is suitable to process all kinds of small and middle-sized shaft and plate work piece, and could also turn various threads, circle arc, circular cone, inside and outside surface of revolved body. This machine is widely used in sanitary, valve, electrical appliance, instrument,automobile, motorcycle, bearings and so on
Higher accuracy
Taiwan linear guideways
Higher speed spindle unit,
Optional homemade spindle
Higher rigidity cast iron
Integrated automatic lubrication
One-piece Casting slant bed CNC lathe

SPECIFICATIONS	Units	TCK56A
Swing over bed	mm	560
Swing over cross slide	mm	360
Distance between centers	mm	500
Spindle bore	mm	65
Bar capacity	mm	50
Spindle nose type	-	A2-6
Spindle speed steps	-	Stepless
Spindle speed range	rpm	4000
Turret/tool post	-	8 Hydraulic turret
Tool size	mm	25 x 25
X axis travel	mm	200
Z axis travel	mm	550
X axis rapid traverse	m/min	24
Z axis rapid traverse	m/min	24
Main spindle motor	kw	11
Tailstock quill diameter	mm	74
Tailstock quill taper	-	MT5
Tailstock quill travel	mm	-
Tailstock travel	mm	450
Guide rail type	-	Slant bed linear rail
Machine weight	kg	4250
Overall dimension	mm	2950x1860x1850

1.Q: Which trade term I can choose?
A: You can choose FOB,FCA
2.Q: How can I get quotation from you?
A: You can make the inquiry online on made-in-china, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 24 hours on work days, and within 48 hours on holiday.
3.Q: how can I make the payment?
A: You can pay by T/T . You can also pay to my company business bank account.
4.Q:What is your delivery time ?
A:The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
We want to know:
Please tell us your specific purchasing requirements, so that we can make specific quotations.

---
