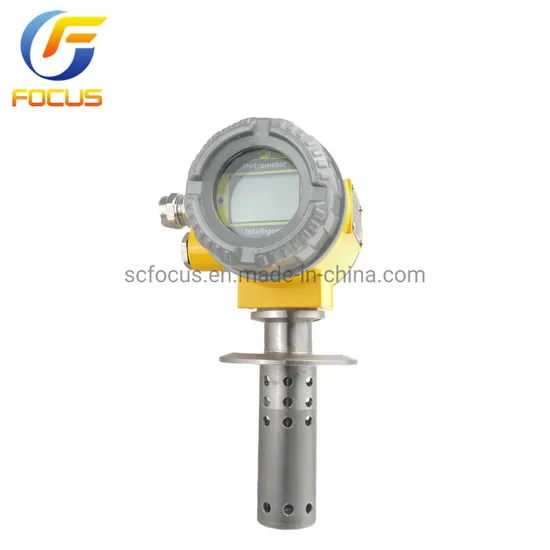

Hdm301 Insertion Type Nitric Acid Online Tuning Fork Density Meter

Product Description

Product DescriptionHDM301 tuning fork densitometer is installed by plug-in type, which is widely applicable to the detection of medium density in pipeline, open tank container and closed tank container. The fluid density directly depends on the vibration frequency received by the tuning fork when the sensor is inserted into the medium. The built-in temperature sensor provides temperature compensation for the sensor. Application: petrochemical industry, brewing industry, food industry, pharmaceutical industry and mineral processing (such as clay, carbonate, silicate, etc.), specifically applied to the interface detection of multi product pipeline in the above industries, density detection of mixing mixture, end point monitoring of reactor, interface detection of separator.
Specification

Measuring range	0.5 - 2.5 g /cc (500 - 2500 kg/m3)
Calibration range	0.5 - 2.5 g /cc (500 - 2500 kg/m3)
measurement accuracy	± 0.002 g /cc (± 2 kg/m3)
Repeatability	± 0.0002 g /cc (± 0.2 kg/m3)
Operating temperature range	-50ºC ~ +200ºC
Maximum working pressure	207 bar (3000 psi)
Fluid viscosity range	0 - 20000 cP
Temperature Coefficient	Less than 0.1 kg/m3/°C (after correction)
Pressure effect	Negligible
Built-in temperature sensor	Digital sensor
Wetted material	316L stainless steel Hastelloy
Fork body coating	Standard type, PTFE or electrolytic polishing
Power supply	24VDC, ≥50 mA
Analog signal output	4 -20 mA,0-1000Hz,RS485 Modbus RTU
Output accuracy (20 ° C)	± 0.1% of reading or ± 0.05% FS
Output repeatability (-40 ~ +85 ° C)	± 0.05% FS
Process connection	ANSI 150 ~ 1500 RF DIN 50 PN16 DIN 50 PN40 IDF and RJT Hygienic
Protection level	IP65
shell	Aluminum alloy

Product FeaturesReal-time MeasurementCan be directly used for production process control
Stainless Steel MaterialSafety and health, good corrosion resistance
Four-wire Output Four-wire signal output, higher stabilityDetailed Photos
Packaging & Shipping
Company Profile
FAQQ: How long will you give me the reply? A: we will contact you in 1 hours as soon as we can.Q:Could I visit your factory?A: Sincerely invite you to visit our factory.Q: Do you provide samples ? A: Yes,we have materials in stock to help you to get the samples as soon as we can.Q: How about the quality of the managements ?A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shippingto you . We have the certification of ISO,CE we could send the certification test of our company to youQ: What is your terms of payment ?A: We could accept T/T, Paypal, WU ,Credit AssuranceQ: What is the warranty for your product ?A: Warranty: 1 years, Lifetime maintenance

---
