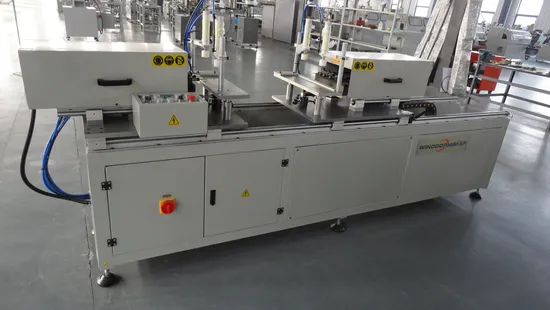

Aluminum Window Door Frame Making Machine Window Frame Hinge Hole Drilling Machine

Product Description

Product Description
Specification:
Used for drilling hinge holes on the aluminum and curtain wall profiles, for large volume production. It can drilling about 4 holes at both two side with high efficiency. Each side can work together and separate. Pneumatic clamping. Each heads distance can be adjusted for meet different requirement. Customized Technical Parameter:

Power supply	Made to order
Hydraulic gearbox motor power	2x2.2KW
Rotary speed	2800r/min
Operation air pressure	0.5~0.8Mpa
Processing range of widow size	450-1800mm
Max. Processing profile section size	300×300
Max. Processing depth	125mm
Drilling hole diameter	φ3-7mm
Dimension	3100×1000×1500mm(LxWxH)
Weight	800kg

Certifications

Company Profile

Jinan Windoormaker Machine CO., Ltd. Is an engineering company that has been in business for over 10 years which specialized in the manufacture and supply the UPVC & aluminum window and door machines.
Windoormaker is a factory with cover area of 15000 m² . During the years developing, has made many devotes of machine improving, introducing new equipment and technology innovation for the production.


Machine at old customer


Packaging & Shipping

---
