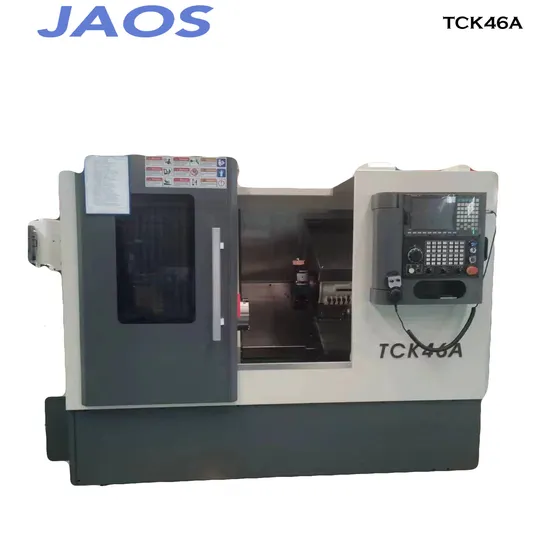

Best Tck46A Metal Turning CNC Lathe Inclined Bed Lathe Machine Price

Product Description

CNC Lathe use: The machine is The machine is suitable to process all kinds of small and middle-sized shaft andplate work piece, and could also turn various threads, circle arc, circular cone, inside and outsidesurface of revolved body. This machine is widely used in sanitary, valve, electrical appliance,instrument, automobile, motorcycle, bearings and so on.
Product main technical specification:

Specifications	Unit	TCK46A
Max.swing dia. over bed	mm	460
Max.swing dia. over slide	mm	260
Max.processing length	mm	350
Max.bar capacity	mm	45
Max processing diameter of plate type work piece	mm	400/320
Spindle nose	GB59001	A2-5
Diameter of spindle through hole	Φ/mm	56
Spindle speed range	r/min	50-3500
Spindle shift mode		Stepless speed changes
Motor power of spindle	KW	7.5
Chuck type		Hydraulic chuck
Chuck size	Inch	8
X axis rapid traverse	m/min	24
Z axis rapid traverse	m/min	24
X axis servo motor torque	N.m	7.5
Z axis servo motor torque	N.m	7.5
X axis travel	mm	240
Z axis travel	mm	400
Guide way type		Linear guide
Tool post type		Horozonta l8/12 station
Tool shank size(square cutting tool/boring cutting tool)	mm	25*25/Φ32
Tail stock type		Hydraulic
Tail stock quill dia	Φ/mm	70
Tail stock quill travel	mm	80
Tail stock quill taper		MT5#
Total rated power	KW	11
Total rated current	A	23
Net weight	kg	3000
Machine dimension(L*W*H)	(mm)	2500*1700*1890

FAQ:
1.Q: Which trade term I can choose?
A: You can choose FOB,FCA
2.Q: How can I get quotation from you?
A: You can make the inquiry online on made-in-china, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 24 hours on work days, and within 48 hours on holiday.
3.Q: how can I make the payment?
A: You can pay by T/T . You can also pay to my company business bank account.
4.Q:What is your delivery time ?
A:The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
We want to know:
Please tell us your specific purchasing requirements, so that we can make specific quotations.

---
