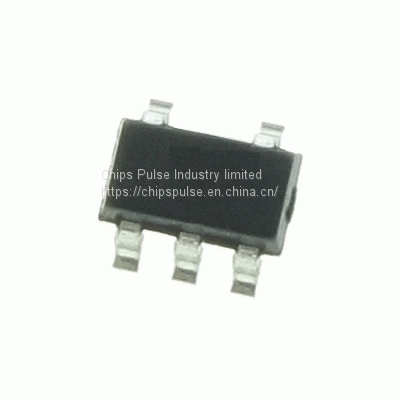

TC1014-3.3VCT713

Product Details

Product Description

Product Description
Product attribute attribute value search is similar
Manufacturer: Microchip
Product type: low dropout regulator
RoHS: Details
Installation style: SMD / SMT
Package / box: sot-23-5
Output voltage: 3.3 V
Output current: 50 Ma
Number of output terminals: 1 output
Polarity: positive
Static current: 500 Na
Input voltage (min): 2.7 V
Input voltage (maximum): 6 V
Output type: fixed
Minimum operating temperature: - 40 C
Maximum operating temperature: + 125 C
Return voltage: 2 MV
Qualification: aec-q100
Series: tc1014
Encapsulation: Reel
Encapsulation: cut tape
Encapsulation: mousereel
Trademark: Microchip Technology / ATMEL
Return voltage - maximum: 85 MV at 50 Ma
Height: 1.3 mm (max)
Length: 3.1 mm (max)
Line adjustment rate: 0.05%
Load regulation: 0.5%
Product type: LDO voltage regulators
three thousand
Subcategory: PMIC - power management ICs
Voltage regulation accuracy: 2.5%
Width: 1.8 mm (max)
Unit weight: 6.300 mg

---
