Basic Info.
Voltage
220V/380V/415V/440V/460V/600V
Composition
Concentration
Processing Material
Natural Ingredients
Process
Concentration and Dry
Consturction Material
Stainless Steel 304 or 316
Power Supply
Customizable
Function
Continous Working Evaporator
Transport Package
Export Standard
Specification
CAPACITY: CUSTOMIZABLE
Trademark
Wenzhou Longqiang
Production Capacity
50 Units/Year
Packaging & Delivery
Package Size
350.00cm * 220.00cm * 750.00cm
Package Gross Weight
3000.000kg
Product Description

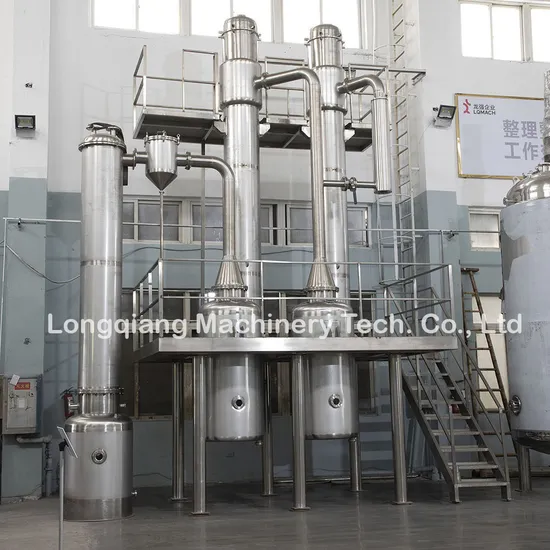

Falling Film Evaporator
(specification customizable)
Falling film evaporator is widely used to concentrate solutions, especially with heat sensitive components, in pharmaceutical, food, chemical and light industrial, and so on. It features high evaporative capacity, energy saving and low operating cost. What is more, materials, while being evaporated, are of invariance.
| Type | Single effect | Double effect | Three effect |
| Evaporative capacity (kg/h) | 300-2000 | 1200-4000 | 3600-15000 |
| Feeding material density % | According to material |
| Discharge material density % | According to material |
| Steam pressure | 0.5-0.8 |
| Steam consumption / Evaporative capacity(with heat pressure pump) | 0.65 | 0.38 | 0.28 |
| Evaporating temperature | 45-90 |
| Sterilizing temperature | 90-110 |
| Cooling water consumption / Evaporative capacity (inlet 20C,outlet 40C) | 28 | 11 | 8 |
| Note: we can design custom product according customer's requirement. |
>>
