Building Tinted Single, Double Low E Reflective Insulated Double Glazing Construction Window Glass Curtain Wall Insulating Tempered Safety Insulated Glass

Product Description

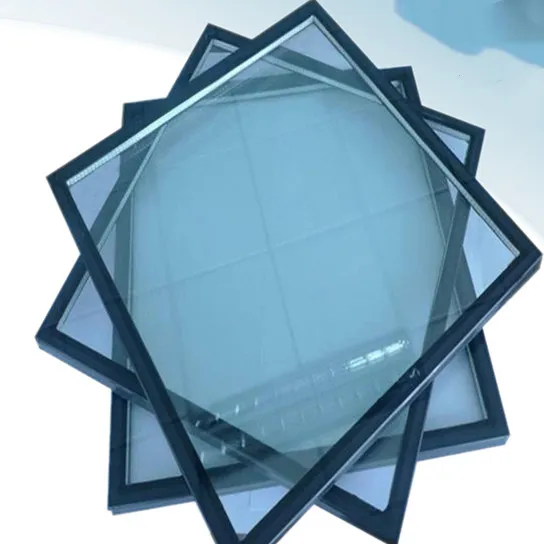

Product DescriptionINSULATED GLASS
Double glazed glass commonly consists of two (sometimes more) panes of glass separated by an aluminum spacer and sealed together at the edge. The insulating airspace is filled with dry air or a noble gas, such as argon or krypton inside to slow the heat exchange and reduce noise levels. The aluminum spacer is filled with silica desiccant pellets to ensure removal of any moisture in the airspace. The IGU is designed to keep homes warmer in the winter and cooler in the summer.
Low E Glass:
Low E glass (Low Emissivity) provides excellent performance in situations where temperature separation is desired.
Low-E is used to help meet energy efficiency requirements by blocking UV light and providing heat insulation. This is
done with a special thin-film metallic or oxide coating which prevents the passage of short-wave solar energy into a building and also prevents long-wave energy produced by heating systems and lighting from escaping outside.
Low-e Insulated Glass :
it is made by 2pcs or more float glasses which filled with desiccant of Argon gas with Aluminum frame.
Primary seal(butyl)between glass and Aliminum frame, secondry seal(polysulfide or structure). the insulated glass
will be effectively protect radiation when coated Low-E film.
high strength
The impact strength of tempered glass of the same thickness is 3 to 5 times that of ordinary glass, and the bending strength is 3 to 5 times that of ordinary glass.
Thermal stability
Tempered glass has good thermal stability, and can withstand a temperature difference of three times that of ordinary glass, and can withstand a temperature difference of 300 °C.

Thickess of single glass	4mm 5mm 6mm 8mm 10mm
Max Size	Max:2500*4000mm, Min:180*350mm and customized size is available.
Glass type	Low E double glazed glass, reflective double glazed glass, clear double glazed glass, tinted double glazed glass etc.
Other availbe glass color	Clear, utral clear, grey, green,blue, bronze,etc.
Aluminum Spacer	6,9,12mm etc (1/4", 11/32", 1/2", 5/8")
Spacer filler	Dry air, noble gas like Argon,etc.
Application	External use of windows, doors, skylight, roof, curtain wall, etc.

Detailed Photos
Company ProfileQingdao Rich Glass Co., Ltd. is an active, energetic, fast-responding, honest and responsible glass product supplier. The company is located in Qingdao, Shandong Province in the north of China, only 10 kilometers away from Qingdao Port, which is China's third largest port. Ruichi Glass specializes in the production and sale of 3mm-25mm tempered glass, laminated glass, insulating glass, float glass, coated glass and other architectural glass; frosted glass, screen printing glass, painted glass, bathroom door glass and other decorative glass; aluminum mirror,silver mirror, copper-free mirror, antique mirror, embossing mirror, sheet aluminum mirror, hot bending mirror, dressing mirror, bathroom mirror, etc. Rich Glass has a professional, efficient and experienced sales team to help you source the right products and solve the problems encountered in your procurement. Rich Glass puts product quality and service first. With advanced production equipment and high-quality raw material suppliers, each piece of processed products is guaranteed to be the best.
Packing&Delivery1.To ensure safe shipment, our glass will be taken good care of by this way.
2. Paper and Cork liner will be put between every two glass to prevent them hurt each other.
3. Glass will be put in suitable wooden crate with Corner Protectors.
4. Under wooden crate there will be legs for forklift easy loading and unloading.Product CertificateFAQQ1: How to judge the quality of float glass?
A1: Flatness, transparency, colorless, impurities, bubbles, etc.
Q2: How to reduce the self-implosion?
A2: The high quality float method is used for hot dip treatment, edge treatment and proper stress intensity. Pay attention to avoid side collision of glass during installation.
Q3: Scope of use of toughened glass?
A3: Safety is not involved in some parts of the building, but it is necessary to install toughened glass to improve the compressive strength and explosion-proof capacity,not to endanger the person safety
Q4: When toughened glass is broken, is the grain smaller the better?
A4: No, the smaller the particle, the easier it is to explode.
Q5: Can toughened glass and semi-toughened glass be made into laminated glass?
A5: Can't. The national standard stipulates: the glass that stresses the difference cannot make laminated glass, because in use process, the pressure that two pieces of glass bears is different.
Q6: Whether the laminated glass can fire, can the sound insulation?
A6: No, the smaller the particle, the easier it is to explode.
Q7: How many uv low-e glass can reduce?
A7: It is not fireproof glass, but has certain fireproof ability, also can soundproof, laminated glass is inside whole sound wave frequency range, in control noise is very good.
Q8: Does the air in the insulating glass do not oxidize the membrane?
A8: No, because there is a molecular sieve in the insulating glass, and the molecular sieve always keeps the air dry, so the membrane is not oxidized.
Q9: How much ultraviolet radiation can low-e glass reduce?
A9: It can reduce uv by 14% compared to heat reflecting glass. That's a 25 percent reduction in uv radiation compared to white glass.Contact Ushttps://richglass.en.made-in-china.com/contact-info.html

---
