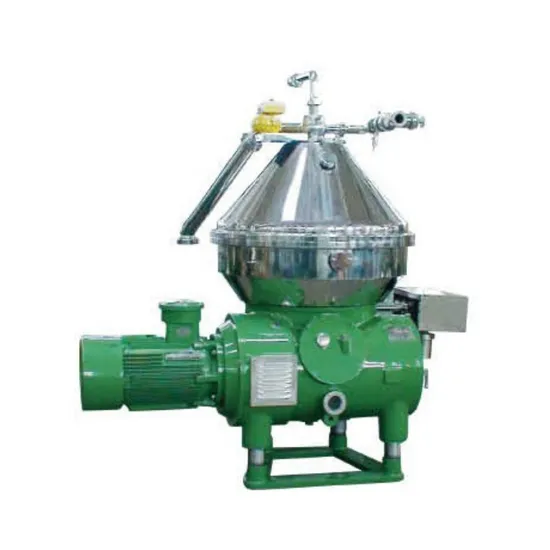

Solid Liquid Waste Oil Separator Disc Stack Centrifuge

Product Description

Large Capacity Disc Stack Centrifugal Waste Oil Separator Centrifuge Descripition:
The Disc centrifuge is manily used for solid, liquid and liquid for chemical, pharmaceutical, oil, food stuff, milk industry, daily industry and
defense industry etc.. It has three types for solid discharge such as central value deslagging, artificial deslagging, and water push deslagging. The
first type is mainly used in the desoponificating of oil refining, and the last two types are used in degumming and dehydrating, they are all
applicable for liquid-liquid-solid and liquid-solid separation.
KYDH series separator is mainly applied in the purification and clarification of the diesel, light fuel oil, heavy fuel oil and other mineral oil, to
remove the water, moisture, mechanical impurities and some harmful substances of the oil. This model is automatic slag type, high separation
efficiency, no need to disassemble to slag. It can be automatic controlled according to requirement which greatly reduce the labor intensity of the
operating. This machine by the accurate calibration balancing, little vibration, can be long-running and operated safety and reliable.
Product Applications:
Successful applications:
1 , Separation of methyl ester, glycerin, catalyst, de-soap, methanol
2, Methyl washing
3, Extraction of fatty acids
4, Glycerol desalination
6, sunflower oil, sesame oil, the fish oil , pork oil ect.
Advantages:
Overload over heat protection
Alarm when the vibration is large
High rotating speed,
accurate dynamic balancing,
long time with low vibration,
safety and security.
Continuous working
We supply complete power plants based on HFO and/or Diesel fuel worldwide,using either low or middle speed (less than 1000rpm)
gensets,These power plants are for baseload,peak shaving or standalone application,ranging from few megawatts to hundreds power plants.we
supply HFO or dual oil (Fo and crude oil) as fuel to generate the electric power station.
Our waste oil separators are used in inland rivers, offshore and ocean shipping have achieved ISO and CCS approval certificate,
and the products used in fishing boats also passed the fishery inspection. we have exported to the Mauritius which is used to separate the waste
oil in ship. Main technical parameters

No.	Model	Capacity (l/h)	Drum diameter (mm)	Drum speed	Motor Power (KW)	Discharge way	Separator factor	Weight(kg)	Size(mm*mm*mm)
1	KYDR203SD-23	1500	230	6930	2.2	Manual	6170	245	850*625*985
2	KYDH204SD-23	2000	270	7200	4	Automatic	6950	550	865*645*1100
3	KYDH206SD-23	3000	315	6500	5.5	Automatic	7000	650	900*600*1150
4	KYDH207SD-23	4000	385	6500	7.5	Automatic	7500	750	1100*1050*1250
5	KYDH209SD-23	5000	430	6000	11	Automatic	8050	900	1200*950*1400
6	KYDH470/ZYDH470	8000	470	5800	18.5	automatic	8500	1100	1250*1000*1550
7	KYDH211SD-23	10000	500	5500	18.5	automatic	8500	1200	1250*1100*1550

Separation conditions and actual productivity of mineral oil

Item

Fuel oil

Lube oil

viscosity/(mm2/s

Distillate Fuel Oil

residual fuel oil

Brand oil

purified oil

Steam turbine oil

1.9~5.5

5.5~24

60

80

120

180

380

460

600

100~120

61.2~74.8

40°C

50°C

40°C

40°C

Density/ (kg/mm3)(20°C)

<900

900~991

880~900

<900

separation temperature/°C

20

40

75

80

90

98

80

75

The ratio of actual productivity and rated capacity %

130

100

70~75

60~65

55~60

45~50

35~40

25~30

20~25

50~60

25~30

80~85

Note: the ratio of actual productivity and rated capacity is 100%

FAQ
Q1: Where can I get product & price information?
A1: Send us inquiry or email directly, then we will contact you.
Q2: How can I make sure your machinery is suitable for me?
A2: Please tell all the separation information you know, such as your raw liquid,
two-phase or three-phase separation, solid content in liquid, solid size, the purpose, etc. After analyzing your information, we will to choose a suitable model for you, and send the details and videos to you.
Q3: What should I do if I want to see the separation effect?
A3: If you can come to our factory with the raw liquid, we will provide test service. Or you deliver the raw liquid to us, and we will do a test, and supply you the testing videos.
Q4: How to enjoy the OEM services?
A4: As the manufacturer of the machine, we will try our best to satisfy you if you have any specific requirement, such as the cover device, drum size, motor voltage, etc.

---
