Accurate Gesture Recognition Finger Touch Portable Interactive Board for School Learning

Product Description

Product introduction:

The Interactive device is our most popular interactive solution for Classroom and Business PPT presentation .The system can easily convert existing data projectors and virtually any smooth, white surface or whiteboard into a fully interactive digital classroom. This allows the teacher full control of their computer and teaching software from the board, using the digital e-pen for navigating, writing and annotating.
Infrared Finger Touch Advantage:
1.mini size, durable, not easily damaged
2.Support 100-point finger touch at the same time. Auto-calibration, complete within 5 seconds.
3.Active projection area is flexible from 30-200inch. it can use in small classroom and big meeting room.
4.Turn the LED/LCD display screen(monitor,smart TV) and common board and wall to interactive touch screen.
5.Support for 3rd party educational software, any Internet content, and applications installed on your computer.
6.Support Windows®2000, Windows®XP, Windows®7,8,10.
Specifications

FT8 Finger Touch Interactive Whiteboard Specifications
Calibration	Automatic(5 seconds) / Manual (4/15 points)
Multi-touch	100 points touch,Writing and erasing can be performed simultaneously
Latency	<30ms
Filter	Software auto-control, enhance stability.
Minimum Active Size	40 inch
Max Active Size	150inch-200inch( no sunshine room);
Technology	Laser Image Calibration Technology
Positional Accuracy	±1 Pixel (Resolution: 4096*4096)
Aspect Ratio	4:3;16:9;16:10
Projector ratio	Ultra short throw: 0.16 installation distance:0.45m Short throw:0.38 installation distance:0.84m Long throw:1.28 installation distance:2.2m.
Number of lasers	unit *2
Power	5w
Power of Laser Beam	280mw*2
Power requirements	3.3V/2A
Signal refresh rate	120fps
Connect	The sensor and computer are connected by USB Cable; Emitter and Sensor are wireless; Emitter just need power.
Weight	0.5kg
OS Requirement	Windows 2000/XP/Vista/7,8, 10
Software	OwaySIWB; multi-board
Certification	CE, FCC
Warranty	1 year
Package	1. Sensor 2.Emitter 3. IR pen 4.USB cable (10m) 5. Remote 6.Power Adaptor 7. CD with software

Installation:
FT8 is small and easy to install. It doesn't require professional technology to install.
Just install the laser emitter in the middle area above the whiteboard (or flat surface) and put the signal receiver on the projector.
FT8 installation diagram

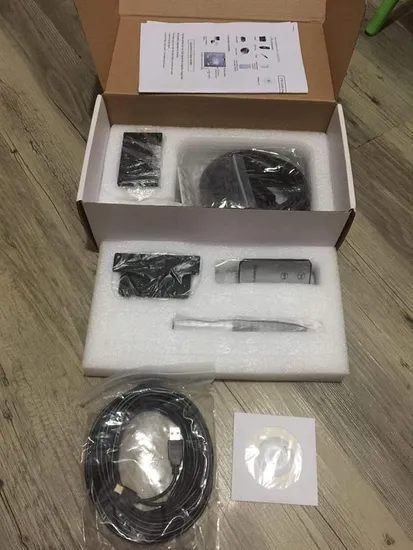

Full package:
1* Receiver
1* Emitter
1*10 meter USB cable
1* IR pen
1* Power adaptor
1* Remote control
1* Small spanner
1* CD
