Radial Arm Drilling Machine Z30100X40

Product Description

drilling machine radial shenyang radial drilling machine z30100x40
Feature :

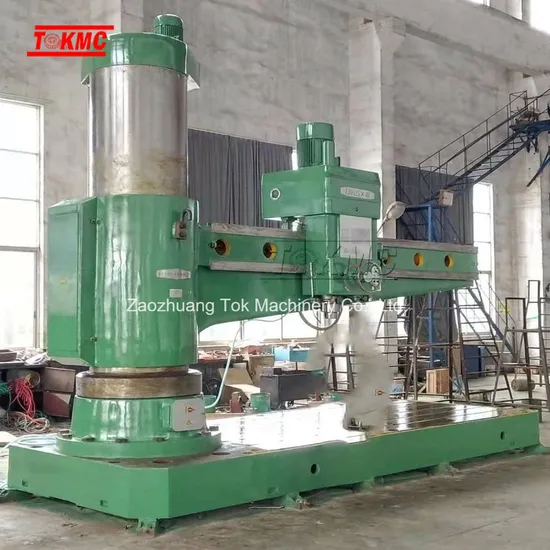

Radial Drilling Machine Model Z30100 is improved on the base of the new series products,it is the universal machine for general purposes, suitable for drilling, counter boring, reaming, spot facing and tapping on medium or large sized parts. Boring is also possible where such technological equipment is available. Radial drilling machine is provided with hydraulic presetting speed shift mechanism to save auxiliary time. It only needs one handle to operate clockwise rotation, stop (brake), variable speed and neutral gear conveniently. Spindle box, rocker arm, inner and outer columns are reliably clamped by hydraulic diamond clamping mechanism. Perfect safety protector and outer column protection are available. In design and production of structure, it further adopts a series of effective measures to prolong precision durability and lifespan of whole machine. Its electrical equipment completely contributes to personal safety, reliability, long service life and convenient maintenance. With wide range of speed and feed, with manual, power & fine feeds. The feed of machines are very easily engaged & disengaged at any time. With safe and reliable feed safety machine, all parts easy operation and change. All controls centralized on the head stock easy operation and change. Clamping for assemblies and speed change of spindle achieved by hydraulic power. Main parts are made by MAZAK machine center which import from Japan with high precision and efficiency, ensuring reliability and high quality. Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts. Spindle parts are made by special high quality steel heat treatment to be made by first class equipment, ensuring high strength and durability. Main gears are machined by gear grinding, the machine ensuring high precision and low noise.

Description				Z30100×31	Z30125×40
Max.drilling diameter (steel)			mm	100	125
Max.drilling diameter (iron cast)			mm	110	140
Distance from the center line of spindle to column		Max	mm	3150	4000
		Min	mm	560	600
Horizontal traverse of spindle head on arm			mm	2590	3400
Distance from spindle nose to working surface of base plate	Max		mm	2500
	Min		mm	700
Vertical travel of arm on column			mm	1300	1800
Elevating speed of arm			m/Min	1.02
Swivel angle of arm			degree	+180°
Taper in spindle			Morse	6
Range of spindle speeds			r/min	8~1000	6.3~800
Number of spindle speeds			steps	22
Range of spindle feeds			mm/r	0.06~3.2
Number of spindle feeds			steps	16
Spindle travel			mm	500	560
Maximum permissible torque of spindle			N·m	2500	3200
Maximum permissible feed pressure of spindle			N	50000
Power of the main drive motor			kw	15	18.5
Rated voltage			V	380V 50 HZ other
Power of arm elevating motor			kw	3	5.5
Power of hydraulic clamping motor for spindle box,column,arm			kw	0.75	1.1
Power of coolant pump motor			kw	0.09
Weight of the machine(approx.)			kg	20000	30000

---
