Small and Easy Stone Engraving Machine for Headstone Suppliers

Product Description

Team Development
Team Development

Exhibition
Exhibition

Certifications
Certifications


Works Display
Works Display


Engraving machine

the imported straight guide rail is widened,with large bearing capacity,stable operation and high precision.

Engraving machine

constant power spindle motor,large cutting force,high efficiency.

Engraving machine

the whole machine is of steel structure,rigid and not easy to deform,and the bearing capacity of the machine can reach more than 4 tons.

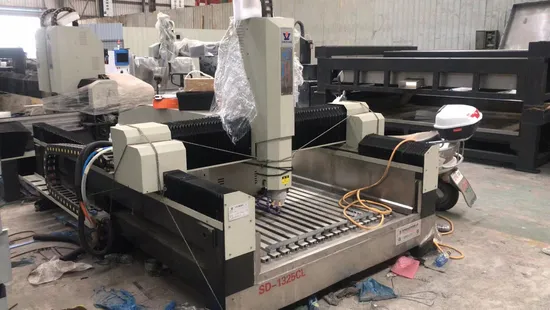

Product Number	SD-1325CL
Platform Dimensions	1300x2500mm
Working Size	1200*2400mm
Working Table	Aluminum T-Slot Table with PVC Plate
Linear Guide Rail:	X Y Z Axis PMI-30
Transmission:	X Y Axis Helical Rack; Z Axis Ball Screw
Feed Height	≤450mm
Air Speed	15m/min
Processing Speed	10m/min
Spindle Power	5.5kw Water Cooling Spindle (Frequency Conversion)
Spindle Speed	6000-24000 rpm/min
Motor	Servo Motor
Drive	Servo Drive
Coolant System:	Industrial Coolant System
Operating Voltage	AC220V/50Hz or AC380V/50Hz
Engraving Tool	ø 3.175/4/6/12.7mm
File Format	HPGL
Water Tank:	Stainless Steel
Positioning Accuracy	±0.03mm
Repeatability	±0.02mm
Control System	CA-100
Machine Dimension	2200x3500x2200mm
Weight	2600kg

FAQ
FAQ
Q: Are you factory or trading company? A: We are factory, located in Shuitou Town,Fujian Province, where is the stone center of China.

Q: What is the MOQ?
A: 1 set.

Q: What is the warranty time?
A: 1 year.

Q: This is the first time to use stone cnc router machine, is it easy to operate? A: Yes, it is easy, we will support: 1).English guide video and instruction book are sent to you free together with the cnc router. 2).Free training course in our factory.Engineers are available to serve overseas but all the expense needs being paid by your side.

---
