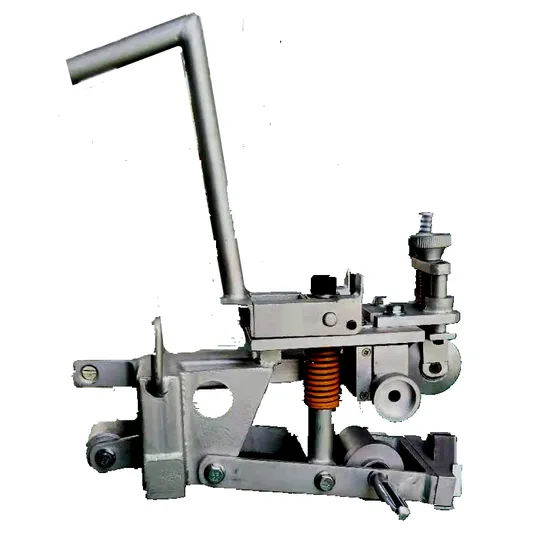

Wire Stripping Machines for Steel Cord Belt Splicing

Product Description

For stripping steel cables when preparing belt splices.Highly efficient and labour saving for conveyor belt heating splice.The cutting device designed for cable pitches of 10-25mm and for diameter of 4.9-13.2mm. Consists of pulling unit, slide unit and cutting device ( blades).

STRIP MACHINE WEIGHT: 13KG
TRACTION	BELT THICKNESS	STEEL CORD DIAMETER	CABLE PITCHES	BELT STRENGTH	PULLING SPEED
≥6KN	≤43mm	4.9-13.2mm	10-25mm	ST1600--ST5400	6--20m/min
PULLING UNIT WEIGHT: 55KG
MODEL	RATED TRACTION	PULLING SPEED	POWER	POWER SOURCE	SIZE( L X W X H)
BD-18	400kgf	12.5m/min	1.1kw	380V/50HZ,3ph	480x300x410mm
SLIDE UNIT WEIGHT: 31KG
WIDTH	HEIGHT	LENGTH	WEIGHT
470mm	410mm	2500mm	31kg

NOTE: PULLING UNIT VOLTAGE CAN BE CUSTOMIZED!

---
