Product Details
Product Description
Product Description

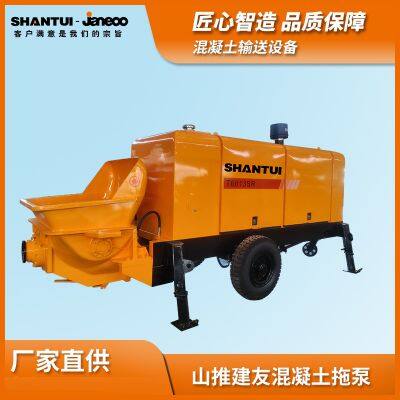

Towed concrete pumpT6013SR(diesel engine) configuration list
Project
| unit
| T6013SR
|
theoretical conveying capacity
(high pressure/low pressure)
| m3/h
| 45/68
|
theoretical maximum conveying distance of concrete (horizontal/vertical)
| m
| 400/8080
|
pumping concrete maximum pressure
| MPa
| 13
|
distribution valve type
|
| Stube
|
maximum aggregate particle
| size mm
| gravel ≤40, pebbles≤50
|
slumping degree
| mm
| 120～230
|
concrete cylinder
| mm
| φ200×1650
|
main oil cylinder
| mm
| φ125×φ80×1650
|
hopper volume/feeding height
| m3/mm
| 0.5/1400
|
pumping working pressure
| MPa
| 30
|
distribution pressure
| MPa
| 16
|
Hopper mixing working pressure
| MPa
| 14
|
MPa14 Hydraulic fuel tank volume
| L
| 500
|
cleaning method
|
| High pressure washing
|
diesel
| engine kw
| 129(Weichai) (three-stage)
|
oil pump
| ml/r
| double112
(South Korea Kawasaki)
|
valve set
|
| German Berson
|
hydraulic hose
|
| Italy
|
Maggi Electric
|
| Zhengtai, Schneider, construction machinery special controller
|
conveying pipe
|
| φ125/150meters
|
dimensions(length×width×height)
| mm
| 6800×2200×2420
|
Preparation: Audit: Account Manager: Customer confirmation:
Other instructions:
1、 The concrete drag pumpis implemented in accordance with the national standardGBT13333-2004and the contract;
2. National standards and parts not agreed in the contract shall be implemented according to the manufacturer's product parameters;
3. Due to technical improvements, the model, technical parameters, and place of origin of the outsourced parts may be changed, but they are not lower than the existing functions;
4、. The theoretical maximum conveying distance of concreteis the theoretical calculated value under ideal working conditions and is for reference only. The actual conveying height and distance are related to the characteristics of the actual pumped concrete, and the actual situation shall prevail.
5. The company has the right of final interpretation of the contents listed in this technical agreement.
>>
