200tpd Cement Calcination Rotary Kiln

Product Description

Cement calcination rotary kiln
1.Introduction of rotary kiln
Rotary kiln is the main equipment for claiming cement clinker and it can be used widely for cement industry, metallurgy industry, chemical industry, etc.
The rotary kiln is composed of the shell, the supporting device, the supporting device with thrust roller, the driving device, the movable kiln head, the sealing device at kiln tail, the combustion device, etc.
It has the simple structure and reliable operation, at the same the production process of the rotary kiln can be controlled easily.
Through the technical renovations, the rotary kiln claiming system equipment has adopted the advanced hydraulic thrust roller device,and the other national advanced technologies.
2.Features of rotary kiln
Rotary kiln is used for calcinating high standard cement in cement factories, but also widely used in metallurgy, construction and chemical industry.
The rotary kiln produced by our factory has strong structure, smooth operation, and high quality products. Besides, we provide our customers with advanced and efficient shaft preheater and five stage cyclone preheater.
3.Application of rotary kiln
Rotary kiln belongs to building material equipment, which can be divided into cement kiln, metallurgy chemical kiln and lime kiln according to different materials.
Rotary kiln is used for calcimine of high aluminum vandal ochre in refractory material industry; for calcimine of calotte and aluminum hydroxide in aluminum manufacturer; for claiming of chrome sand ore and chrome powder ore in chemical plant.
4.Technical parameters of rotary kiln

Model(m)	Shell size			Capacity(t/h)	Rotating speed(r/min)	Power(kw)	Weight(t)
	Dia.(m)	Length(m)	Slope(%)
1.4×33	1.4	33	3	0.9-1.3	0.39-3.96	18.5	47.5
1.6×36	1.6	36	4	1.2-1.9	0.26-2.63	22	52
1.8×45	1.8	45	4	1.9-2.4	0.16-1.62	30	78.2
1.9×39	1.9	39	4	1.65-3	0.29-2.93	30	77.59
2.0×40	2	40	3	2.5-4	0.23-2.26	37	119.1
2.2×45	2.2	45	3.5	3.4-5.4	0.21-2.44	45	128.3
2.5×54	2.5	54	3.5	6.9-8.5	0.48-1.4	55	196.29
2.7×42	2.7	42	3.5	10.0-11.0	0.10-1.52	55	198.5
2.8×44	2.8	44	3.5	12.5-13.5	0.437-2.18	55	201.58
3.0×60	3	60	3.5	12.3-14.1	0.3-2	100	310
3.2×50	3.2	50	4	40.5-42	0.6-3	125	278

5.Our factory Raw material Test Plant of rotary kiln
6.Our factory Production of rotary kiln
7.Our factory delivery of rotary kiln

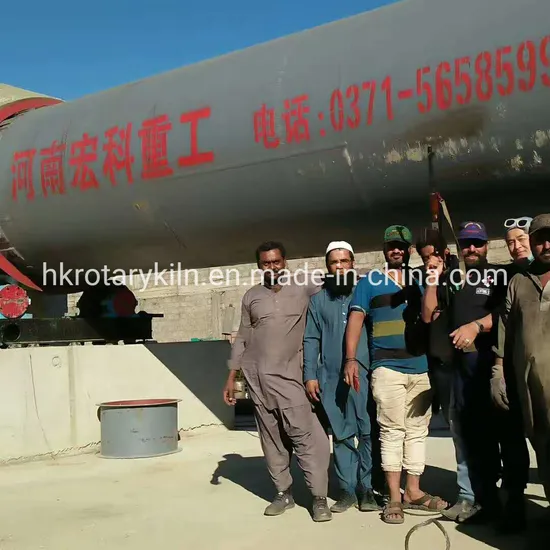

8.Working Sites for rotary kiln

---
