16mesh woven wire mesh weaving machine

Product Details

Product Description

Product Description
lanyingmachine

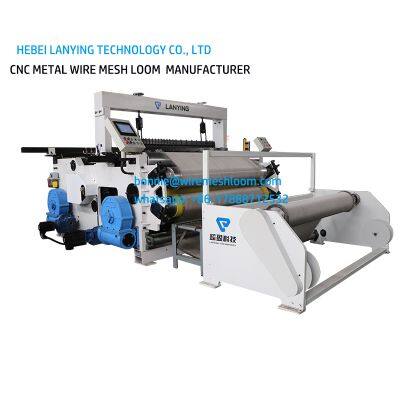

SG180 Series Weaving Machine
SG180 Series CNC metal wire mesh weaving machine is suitable for super heavy wire mesh weaving, there are single beat-up and double beat-up type. It can weave wire materials such as stainless steel, iron, bronze, aluminum, alloy, nickel, polyester,etc.

Product Series	SG100 Series	SG130 Series	SG160 Series	SG180 Series
Standard weaving width (Special width on request)	1300mm 1600mm 2000mm	1300mm 1600mm 2000mm 2500mm 3000mm	1300mm 1600mm 2000mm 2500mm 3000mm	1300mm 1600mm 2000mm 2500mm 3000mm 4000mm
Wire diameter range	0.016-0.3mm	0.06-0.45mm	0.1-0.7mm	0.2-2.1mm
Plain weave square hole (mesh/inch)	40-400	20-260	10-100	6-60
Twill weave (mesh/inch)	≤600	≤400	≤350	≤260
Wire material	Stainless steel, iron, copper, aluminum, platinum, nickel, polyester	Stainless steel, iron, copper, aluminum, platinum, alloy, nickel, polyester	Stainless steel, iron, copper, aluminum, platinum,alloy, nickel, polyester	Stainless steel, iron,copper, aluminum, alloy, nickel, polyester
Speed (the actual speed depends on the weaving width and specs)	100 rpm （max 120rpm）	100 rpm （max120rpm）	50-70 rpm	35-50 rpm

Wire diameter	0.2-2.1mm
Weaving density	Plain weave square hole 6-60 or 2-40mesh/inch; twilled weave up to 260mesh/inch
Nominal width (special width on request)	1.3m	1.6m	2m	2.5m	3m	4m
Speed(the actual speed depends on the weaving specs and width)	46-55RPM	46-55RPM	40-50RPM	32-35RPM	30-35RPM	25-30RPM
Total power	13KW	13.5KW	16KW	17KW	17.5KW	18KW
Size (L*W*H) mm	3500X3860X2160	3500X4160X2160	3500X4560X2160	3500X5600X2160	3500X5560X2160	3500X5560X2160
Weight	10000KG	13000KG	14000KG	18000KG	19000KG	21000KG

---
