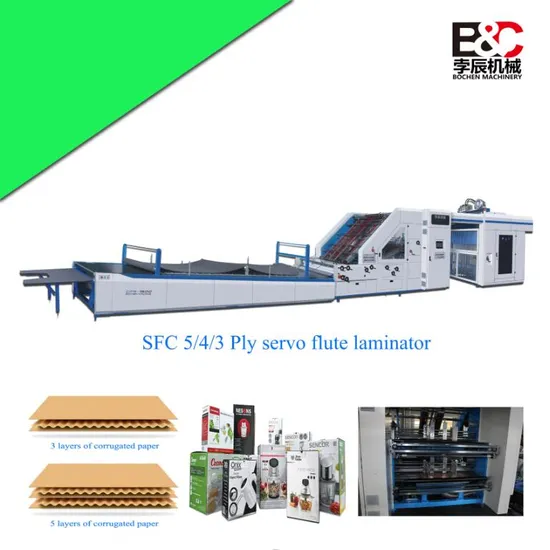

High Speed Five Layers 5 Plys Litho Laminator

Product Description

AUTOMATIC THREE-IN-ONE FLUTE LAMINATING MACHINE
Performance characteristics
1. This machine can laminate combination of two corrugated boards and any type of top sheet together. It can produce two -layer board (cardboard + cardboard), 3ply,4ply, 5ply, 7ply and other products.
2. Laminating type: corrugated + corrugated + cardboard, corrugated + corrugated, corrugated + cardboard, cardboard + cardboard, cardboard + gray board + cardboard, etc.
3. Automatic detection of top and bottom paper, automatic servo correction technology. Make the top paper automatically track and fit the bottom paper, and the accuracy is high.
4. The bottom paper feeding part use imported servo motor controlling system, with Japan NITTA suction belt and together with lead edge feeding system.
5. The multifunctional rack of the bottom paper are suitable for curved corrugated.
6. Large stainless steel glue roller(160mm) with fine anilox grinding to guarantee even glue coating even at min glue quantity.
7. The dual -use lifting platform, we can use the pre-stacker structure to push the pre -pile of paper into the platform. We can also push the stack of paper directly into the platform.
8. Special polyethylene materials on the surface of the coating roller and pressure roller, glue is automatically dropped off, free scrubbing.
9. Use a circulating glue system to reduce glue loss and stabilize glue adhesion effect.
10. One -click adjustment of the whole machine (just enter the paper size).
11. Video monitoring.
SPECIFICATION:

MODEL	SFC-1500	SFC-1700	SFC-1900
Max Sheet	1500×1500mm	1700×1700mm	1900×1900mm
Min Sheet	360×380mm	360×400mm	500×500mm
Top Paper Thickness	120-800g	120-800g	120-800g
Max Speed	150m/min	150m/min	150m/min
Fitting Precision	±1mm	±1mm	±1mm
Machine Power	22KW	25KW	27KW
Bottom Paper Thickness	≤10mm(A-F corrugated board) ≥300g cardboard	≤10mm(A-F corrugated board) ≥300g cardboard	≤10mm(A-F corrugated board) ≥300g cardboard

Machine transport and packing
__________________________________________________________________________
1. The packing of small machines is confirm to export wooden case standard, strong and durable. The wooden case's thickness is generally 1 cm.
2. In order to be waterproof, we usually use bubble film to wrap machine.
3. We can handle shipping for customers too.
Our Company:
_____________________________________________________________________

Certificate:
______________________________________________________________________
FAQ:
______________________________________________________________________
Q1: Are you a manufacturer?
Yes, we are specialized manufacturer of hot foil stamping machine and die cutting machine in China over 20 years.
Q2: Do you have stock products to sell?
We manufacture machines in batch. So most of machines have in stock, please check with us before ordering.
Q3: How about installation and training?
Installation and training: If purchaser's engineer travels at own cost to China, free training session. If engineer sent to purchaser's factory, all travel cost paid by purchaser.
Q4: How about warranty?
Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or accidental damage or operator's error. During the valid time, we will supply spare parts. If you have any other questions, pls contact us and we will reply you through product's photos and videos to make every detail clear.
Why choose us?
_____________________________________________________________________
1.Our brand "INNOVO" is well-known in our domestic market and over 80 countries and territories. Europe, South America, Latin America, Southeast Asia, Middle East, Africa etc.
2.Genuine products with excellent quality. Company has always proved the 100% quality.
3.After-sales service and technical assistance: company provides after sales service and technical assistance as per customers' requirement and needs. After-sales service provided engineers available to service machinery overseas.
4.Cost saving: lon-life, shock resistant and high reliability bearings with excellent quality and better performance, resulting in increased cost saving.
5.Less cost of purchase: We are the manufacturer directly.
6.Attendant customers queries promptly.

---
