High-Efficienty H Serious Qh3 Hand Insert Bottle Blowing Machine

Product Description

Product Description

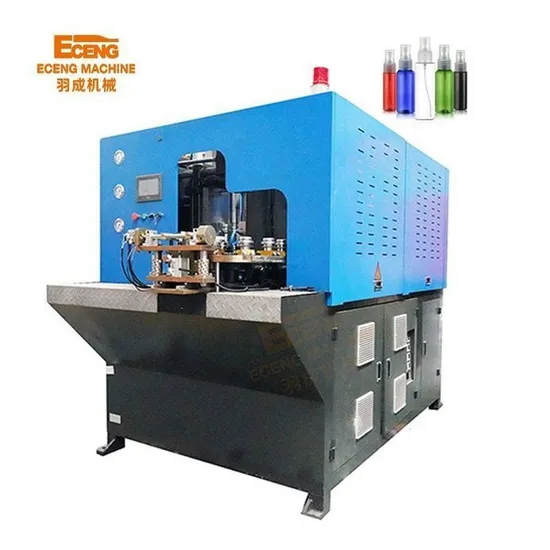

Hand-inserted High-speed Blow Molding Machine
The H series is a specialized equipment designed for cosmetic bottles, daily bottles, special-shaped bottles and small-volume conventional bottles. This equipment is easy to operate and has a wide range of applications. It is suitable for PET bottles of various calibers and uses. The H series does not have automatic feeding equipment, but is replaced by manual feeding. It is an ideal choice to replace traditional semi-automatic equipment with low cost, stable and reliable, safe and practical.
Product Parameters

SPECIFICATION
Item	QH3
Bottle type specification	Cavity	3
	Theoryapp:ds:theory output	3000
	Max.volume	2L
	Bottle mouth maximum overall DIdiameter	80mm
	Bottle biggest diameter	100mm
	Bottle maximum height	330mm
Power specifications	Light tube quantity	40pcs
	Light tube power	2KW/2.5KW
	Maximum heating power	58KW
	All electric machine installation	89.5KW
	Actual consumption	68.5KW
Air pressure specification	Work pressure	7-9kg/cm2
	Low-pressure gas consumption	1000L/min
	Blow bottle pressure	25-35kg/cm2
	Higher -pressure gas consumption	1500Ltr/min
Forzen water specification	Work pressure	5-6 kg/cm2
	Temperature range	10ºC
	Consumption	5000kcal/hr
	Forzen water flow	30L/min
Machine specification	Size of the machine	2.25x1.6x1.7
	Weight of the machine	2.5ton

Detailed Photos
ADVANTAGE 1
Wide versatility, suitable for various calibers and shapes, especially suitable for daily chemical products.
ADVANTAGE 2
No automatic feeding system, updating is more convenient and faster.
ADVANTAGE 3
High safety, no contact with clamping and high-pressure blowing unit, far away from dangerous areas.
ADVANTAGE 4
Adopting advanced PLC control system, stable and excellent performance.
ADVANTAGE 5
Small footprint, excellent performance, stability, and reliability, it is an ideal equipment for the production of daily chemical products.

FAQ
Q1: Are you a factory or trading company?
A1: We are a factory.
Q2: Where is your factory located?
A2: Our factory, near Shanghai & Ningbo port, is located in Zhangjiagang, Jiangsu.

Q3: How about quality control in your factory?
A3: " Quality is the key point, do what customers need"
Eceng Machinery Factory focuses on quality, and quality control from beginning to end. Every piece of goods is tested strictly before packing and delivery.

Q4: How about guarantee?
A4: One-year guarantee.

Q5: Do you provide bottle blow mold and air compressor?
A5: Yes, we provide a complete system and you will not need to find a suitable air compressor chiller...etc.

Q6: What is the language of the PLC and touch panel?
A6: Don't worry, we will translate the language into English, Spanish, or any other language, to make sure you will have an easy operation.

---
