5 Gallon Bottle Blow Molding Machine - Semi Automatic with Good Quality and Low Price

Product Description

Products Description

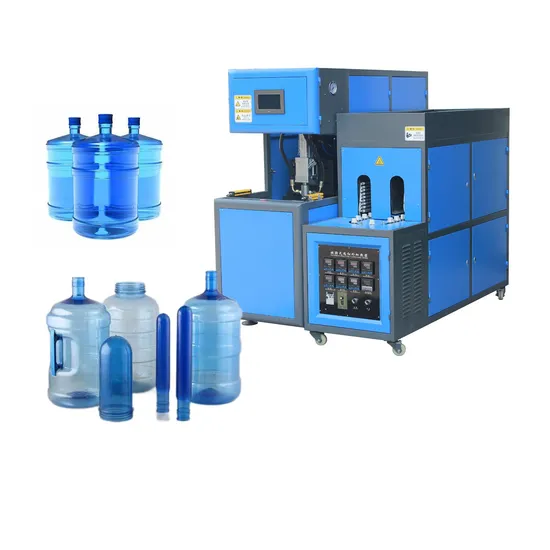

Semi-Automatic PET Bottle Making Machine
Discover the exceptional efficiency and affordability of our Semi-Automatic PET Bottle Making Machine. Engineered for seamless manual operation, this machine is capable of producing an impressive range of 70-2000 bottles per hour, accommodating sizes from 5L to 20L. It's the perfect solution for manufacturing a diverse array of bottles, including chemical, fruit juice, mineral water, and edible oil bottles, specifically designed to meet the demands of the beverage and chemical industries.
Features Our innovative design ensures that PET preforms are meticulously positioned at optimal distances, complemented by a precisely adjusted heating tube height to deliver peak performance every time.
Equipped with dual start-up switches on each side, our semi-automatic blowing machine allows for quick and easy emergency stops, providing enhanced safety and control. The temperature
control unit operates independently to meticulously address the heating needs and capacity of each distinct zone, assuring precision and efficiency.
The intuitive LED display enhances user experience, allowing operators to effortlessly monitor and fine-tune values for optimal machine performance.
Each heating lamp is strategically calibrated to ensure every preform receives even and consistent heat distribution, guaranteeing superior quality. Detailed Photos

Product Paramenters

model	unit	MW-2000	MW-3000	WM-10L	MW-2000-4	WM-5G
Clamping Force	T	16	20	25	16	30
Container Volume	L	2 cav.:0.1-2.0 1 cav.:2.0-3.0	2 cav.:0.1-3.0 1 cav.:3.0-6.0	2 cav.:0.1-5.0 1 cav.:5.0-10.0	4cav.:0.1-1.5	10-25 (3-5Gallon)
Neck Diameter Range	mm	10-60	10-120	10-120	18-38	65
Container Diameter	mm	120	220	320	120	330
Container Height	mm	380	450	450	380	550
Clamping Stoke	mm	230	330	330	330	330
Max.Stretching Stroke	mm	160	340	440	440	450
Number of Cavities	cavity	1-2	1-2	1-2	4	1-2
Theoretical Output	bph	800-1000	700-900	500-700	1500-2000	70-120
Voltage Standard	v/PH/Hz	380/3/50	380/3/50	380/3/50	380/3/50	380/3/50
Tolal Power(Full Loaded)	kw	10-15	12-17	15-20	15-20	60
Blow Molding Machine	cm	200×65×180	220×75×180	230×65×180	220×85×180	200×80×210
Pre-heater	cm	185×70×145	195×70×145	205×70×145	205×70×145	280×70×160
Net Weight	T	0.8	1.0	1.2	1.4	1.5

Packing and Shipping

Packaging:
Our robust, stable wooden packaging is designed to shield the machine from impact and potential damage during transit. Wrapped in protective plastic film, the machine is safeguarded against moisture and corrosion. This fumigation-free packaging ensures smooth customs clearance. For larger machines, they are securely fixed in containers without the need for additional packaging.
Shipping: For Less than Container Load (LCL), we collaborate with a trusted logistics team to expedite the machine's journey to the port safely and swiftly. For Full Container Load (FCL), we arrange containers, and our experienced personnel meticulously load them with care. Our professional and long-standing partnerships with forwarders ensure your shipments are managed smoothly, aspiring for seamless cooperation and convenience.
Company Profile
Taizhou Maiwei Plastics Machinery Co., Ltd. has been a pioneer in the blow molding industry for years, continuously refining technology to enhance reliability, reduce energy consumption, and increase durability. Our comprehensive product range includes dairy product bottles, wine bottles, oil bottles, laundry detergent bottles, engine oil bottles, sprayers, hollow toys, and various other hollow plastic products, catering to a wide spectrum of needs. Our commitment goes beyond selling equipment; we are dedicated to resolving your packaging blow molding challenges. With a versatile application range, our machines feature adaptable air source systems tailored to user specifications, offering incredible flexibility, low energy consumption, and impressive efficiency.
Our customers
Certifications
FAQ
1.Q:Are you a factory or trading company? Where is your factory located? A: We are a factory,it is located in Huangyan,Taizhou city, Zhejiang Province, China.
2.Q:How about quality control in your factory? A: " Quality is the key point, do what customers needs."In the future, Maiwei will move towards more professional and deeper technical goals.
3.Q.What is your payment and delivery time? A:"The payment is 30% by T/T as down payment,70% by T/T before shipment.And the delivery time of the machines is depended on the machine options. Normally, the delivery time of a standard machine could be within 3-4 months.
4.Q.Do you provide any spare parts with the machine? A: Yes, MAIWEI will provide one set of standard spare parts to customers.
5.Q. What about the after-service? A:We offer over-all after sale service to meet customer's commandincluding on-line consulting and off line technical support.

---
