| Specification: | |

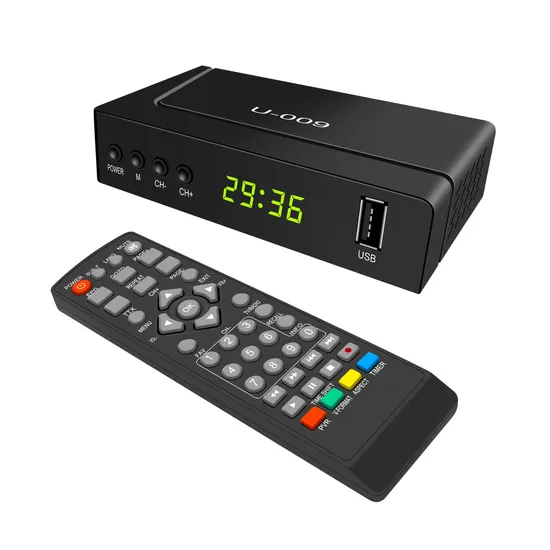

| Features : | 1Full HD DVB-T2 set-top box. 2. Compatible with 576i/576p/720p/1,080i/1080P video formats 3. Chipset :Mstar7T10E&Sunplus 1509M 4. Fully compliant with DVB-T2 standard 5. Supports HD 1.4 6. Auto and manually scan all available TV and radio channels, Parental guidance locking 7. Auto/manual program search, multi-language supported 8. Supports MPEG-1, MPEG-2, MPEG-4 and H.264 decoder (up to 1,920 x 1,080 pixels) 10. USB2.0 host support upgrade, PVR, time shifting and media play with U-Flash or HDD 11. Supports scart output, coaxial, RF in and output 12.Powerful and highly effective 7days EPG function |
| Tuner : | *Input Frequency: VHF 174~230 MHZ, UFH 470~ 862 MHZ *RF input level: -78~20 dBm *RF Bandwidth: 7MHZ and 8MHZ *Signal input: IEC-type female *QPSK, 16QAM,64QAM, 256QAM *FEC: 1/2, 2/3, 3/4, 4/5, 5/6 |
| Multimedia format : | *Decoder format: MPEG 4 AVC/H.264 HP&L4MPEG2 MP&MP.HL *Output format:480i/480p/567i/567p/720i/720p/1080p/1080i *Output port: AV/Scart(optional) *Decoder format: MPEG-1(layer 1&2&3), WMA. *Audio output: Coaxial, L/R(AV or Scart) |
| Power : | *Maximum power consumption:< 10w *Standby power: <1w |
| Hardware Interface : | *Indicators: Power, signal lock *IR Receiver: 38KHZ *LED Display *Loop through output: IEC- type, connector, a single tuner *Coaxial output*USB2.0 *RCA Output(optional) *Scart Output |
| Packing : | packing: 1 Color Box Qty per export carton: 20pcs pieces One Color box includes: 1* DVB-T2 HD Receiver 1* Remote Controler 1* AV Cable 1* User Manual |
