Plastic Shampoo Bottle Blow Moulding Machine

Product Description

Plastic Shampoo Bottle Blow Moulding Machine TCY70 Series

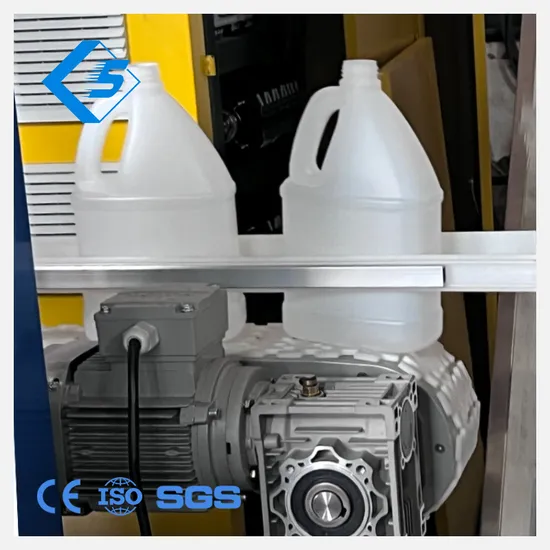

TCY70II series blow molding machine is with the features of low cost, energy save and high quality. Suitable for oil bottles, shampoo bottles, chemical bottles, milk bottles and related product not over 5L. Adopt high quality Mico Computer PLC controler and temperature controler from Mitisubishi Japane to ensure the good funciton of the mico system...Equip with sliencer and oiling system to reduce noise and friction.
Machine model: TCY70II (Double station with Single head)
Production Capacity: 150-180PCS per hour (4L or 5L HDPE bottle as standard)
Suitable material: PP, PE, HDPE and etc.
Max. Products volume: 5L
Screw diameter: Φ 70mm L/D=24

Specifications		TCY70II
Material		HDPE
Max container volume	L	5
Number of die	Set	1
Number of station	Set	2
Output(dry Cycle)	Pc/hr	500*2
Dimension(L*W*H)	M	3.53*2.25*2.6
Weight	Ton	7.5
Clamping Unit
Clamping force	KN	70
Platen opening stroke	MM	188-538
Platen size	MM	338*430
Max mould size(W*H)	MM	360*450
Mould thickness	MM	190-320
Power
Max drive	KW	27.5
Total power	KW	47.5
Fan power for screw	KW	0.48
Air pressure	Mpa	0.7
Air consumption	m³/min	0.9
Average energy consumption	KW	23
Extruder system
Screw diameter	MM	70
Screw L/D ratio	L/D	24
Plasticizing capacity	Kg/hr	70
Number of heating zone	Zone	3
Extruder heating power	KW	14.2
Extruder driving power	KW	22
Die head
Number of heating zone	Zone	3..5
Power of die heating	KW	5.7
Max die-pin diameter	MM	150

Company Profile
Certifications
FAQ
Q: How about your after-sale service ? We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.Q: What is the lead time?For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)Q: What is the warranty period for your machine ?12 months warranty for components and technical support .Q: Do you provide custom machines?Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer's needs.Q: How can we install the machine when it arrives?We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.Q: What's the advantage of SINOTECH?We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost an
Any question,please call me.

Any question,please call me.

---
