Ht Brand Excavator Factory Outlet Chinese Mini Excavator 2 Ton 3 Ton for Sale

Product Description

Production Description
HT Brand excavator Factory outlet Chinese mini excavator 2 ton 3 ton for sale

ENGINE
Emission Standard	Tier 3/ Stage III
Make	LAIDONG
Model	3TE25
Power /Rotation speed	18.4kw(25HP)@2350rpm
Number of cylinder	3
Optional Engine	KUBOTA D1105 (EPA Engine)
TRACK SYSTEM
Maximum Travel speed	3.5km/h
Width of track shoe(Rubber & steel track)	230mm
Number of track shoe per side(Steel track only)	38 pcs
Number of upper roller/ bottom roller(per side)	0/4
PERFORMANCE PARAMETER
Standard bucket capacity	0.01m³
Swing speed	10~12 rpm
Max. Grade ability	35°
Max. Bucket digging force	14KN
Max. Arm digging force	10KN
Hydraulic system pressure	18Mpa
Machine weight	1800kg
MACHINE SIZE
Overall dimension (L*W*H)	3865mm*1050mm*2270mm
Axle base(Track length on ground)	1230mm
Track gauge	820mm
Min.Ground clearance	210mm
Swing radius at tail	1125mm
WORKING RANGE
Max. Digging height	3365mm
Max. Dumping height	2385mm
Max. Digging depth	2050mm
Max. Vertical digging depth	1725mm
Max. Digging radius	3860mm
Min .swing radius	1720mm
Max. Lifting height of blade	230mm
Max. Cutting depth of blade	275mm
Boom swing angle(Left)	75°
Boom swing angle(Right)	45°

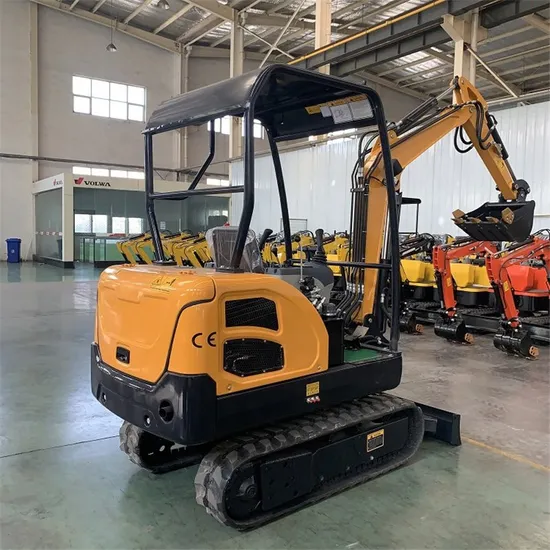

Details Photos:

Accessories:
Packing & Delivery:

Company information:
China Machinery Co., Ltd(CNMC), established in 1980, is an important and a large construction engineering equipment joint-stock enterprise group, It has several wholly-owned subsidiaries, company headquarters is located at National High Tech Zone, Jining City, Shandong province.CNMC Group's manufacturing area is compromised of 50000 square meters where 2000 people are employed full-timely. In the past more than over 30 years, the company always up hold the scientific management of modern enterprises model, rapid rise to become a leader in machinery manufacturing area.Its service scope covers critical economic fields such as construction engineering equipment, mining machinery, rock drilling equipment, steel etc.CNMC Group got ISO9001 international quality system certification, European Union CE certification, SGS certification and Russian GOST certification.Scientific innovation is CNMC motive power. we actively cooperate with the well-known domestic institutions to carry out science research and development. At 2000 year the company and China Science and Technology University together established a steel products Rally testing laboratories, strive to enhance the product's impact resistance, in 2002 year the company and Shanghai Institute of Chemical Research jointly established experimental research center for the Chemical Material. From 2004, CNMC cooperated with Xuzhou Construction Machinery Group Co., Ltd. and other famous company in China. Through exchanges and cooperation and learn from each other, CNMC mechanical products in the stability of performance has been greatly improved.More than 30 years of hard work and struggle, CNMC products have been exported to more than 127 countries, and win good reputation from our customers, because we always pursue "CNMC FOCUS ON QUALITY" and explored a sustainable development path which combining the economic benefits and environmental protection together, and this make a great contribution to the development of China's machinery manufacturing industry and prosperity.

---
