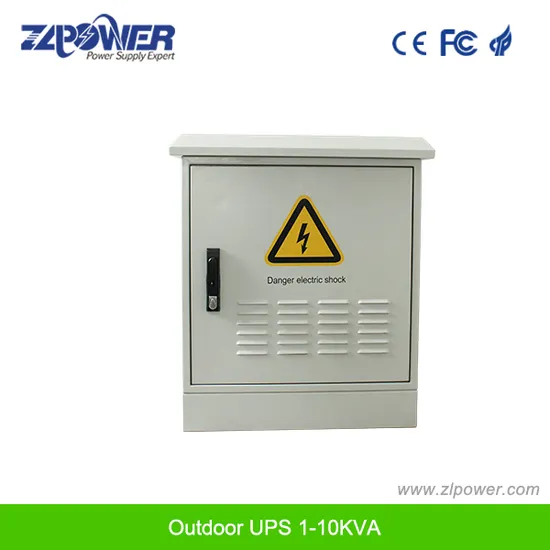

15year Manufacturer High Quality Single Phase 1kVA 2kVA 3kVA 6kVA 10kVA Outdoor Online UPS

Product Description

15Year Manufacturer High Quality Single Phase 1KVA 2KVA 3KVA 6KVA 10KVA Outdoor Online UPS
Key features
1.ZLPOWER Outdoor Intelligent High Frequency Online UPS provide continuous pure sine wave AC power supply for
outside communications / network equipment.
2.Double-conversion online design, high temperature resistant, anti-cold, sealing level for IP65; With the wide range of input voltage and frequency of input window (- 45% +35% rated voltage and ± 10% rated frequency), in many remote areas of China after a severe test of the grid.
3.Using microprocessor control, directly produce highfrequency pulse width modulation wave (SPWM) control of the UPS inverter, to simplify the UPS control circuit, to improve the stability, to have more real-time UPS to quickly respond to changes in the external environment and guarantee the machine's control circuit is more simple and reliable.
4.Using digital control techniques, to avoid the traditional analog control temperature drift inherent defects such as
hardware parameters, to ensure consistency and reliability of UPS.
Specification

Model			RA1KL	RA2KL	RA3KL	RA6KL	RA10KL
Capacity	VA/W		1000VA/800W	2000VA/1600W	3000VA/2400W	6000VA/4800W	10000VA/8000W
Input	Nominal Voltage		200/208/220/230/240VAC
	Voltage Range		115~300VAC			125~275VAC
	Power Factor		≥0.97
	Frequency Range		50Hz:46~54Hz; 60Hz:56~64Hz
Output	Voltage		200/208/220/230/240(1±2%)VAC			200/208/220/230/240(1±1%)VAC
	Frequency		50/60Hz (Adjustable); 50Hz AC Mode: Follow AC Mode (AC Range 46~54Hz); Battery Mode: 50Hz (1±0.2%) 60Hz AC Mode: Follow AC Mode (AC Range 56~64Hz); Battery Mode: 60Hz (1±0.2%)
	Wave Form		Pure sine wave
	Power Factor		0.8
	Harmonic Distortion		≤3% THD (Linear load) ≤7% THD (Non-Linear load)			≤2% THD (Linear load) ≤6% THD (Non-Linear load)
	Overload Capacity		110%~150% maintain 30s then turn to bypass ourput; >150% maintain 300ms			Load <105% work consistant; 105%<load <125% 1min; 125%<load <135% 30sec;>135% 0.5sec
	Current Crest Ratio		3:01
	Connections		Terminal block
Efficiency	Battery Mode		83%			87%
	AC Mode		85%			88%
Battery	Type		Sealed free maintenance lead acid battery
	Nominal DC voltage		36VDC	96VDC	96VDC	192VDC	192VDC
	Stansard Battery Cabinet		3*100AH	8*100AH	8*100AH	16*38AH	16*38AH
	Backup Time (Full Load)		Depens on the capacity of internal battery bank(24AH,38AH,65AH,80AH and 100AH optional)			Depens on the capacity of internal battery bank(24AH,38AH optional)
	Charge Current (Max)		6.0A	6.0A	6.0A	2.0A	2.0A
	Charge Voltage (VDC)		41.1V±0.2VDC	110V±0.6VDC	110V±0.6VDC	219.5V±1.1%VDC	219.5V±1.1%VDC
	Recharge Time		Depends on the capacity of internal battery bank
Bypass	Automatic Transfer		On overload and UPS failure
	Before UPS Power-on		YES
Transfer Time			0 ms(from imain to battery and vice versa); Less than 4ms from inverter to bypass and vice versa
indicators	LCD Display		UPS status, Battery capacity, loading, Fault code (LCD: I/P &O/P voltage&frequency, Battery voltage)
Audible			Bypass, Battery mode, Battery low, Overload, Fault
Communications	Intelligent RS232 serial port		Software support Windows family software, Linux, Sun network operating system, IBM Aix, Compaq True64 SGI IRIX, FreeBSD, HP-UX and MAC
	SNMP (Optional)		Remote control UPS through SNMP management and Internet
	USB (Optional)		Windows family software and Mac OS
Environmental	Operating Temperature		0~40ºC
	Operating Humidity		0~95% (No condensing)
UPS dimension	L*W*H (mm)(UPS main body)		482*380*88.4	482*448*88.4	482*448*88.4	632*482*133.4	632*482*133.4
	L*W*H (mm)(Cabinet)		638*507*775	612*525*1511	612*525*1511	718*595*1371	718*595*1371
Weight(kg)	Net Weight (No battery)		52.00	100.00	100.00	120.00	123.00

Photos
Package
COMPANY SHOW:
FAQ:
Q 1. What's the payment terms and payment method ?
A. We accept L/C, T/T, Credit Card, Western Union, Money Gram, etc.
Usually 30% deposit, 70% before shipment.
Q 2. How's the delivery time ?
A. It usually takes about 3-10 days after payment arrived.
Q 3. How about package ?
A. For the small UPS and the inverters less than 30kg will be packed in foams and cartons. For the big UPS and inverters heavier than 30kg will be packed in pallets or wood boxes .
Q 4. Would you accept to print our logo and design ?
A. Yes, we can print your logo on the inverters, UPS and cartons. Also welcomed your own design of these inverters and UPS.
Q 5. What kind of certificates you have ?
A. For company have ISO9001, ISO14001, TUV and SGS factory certification.
For UPS and power inverters, we have CE,IEC, KC and ETL, etc.
Q6. When the product have problem, how to solve it ?
A. We have a professional after-sales team, in case of any problems, first contact us to help you solve, we have a 24 months warranty and lifetime technical support. We will track product usage until you are satisfied.

---
