Automatic Powder Coating Spray Cyclone Booth for Fast Color Change

Product Description

Product Description

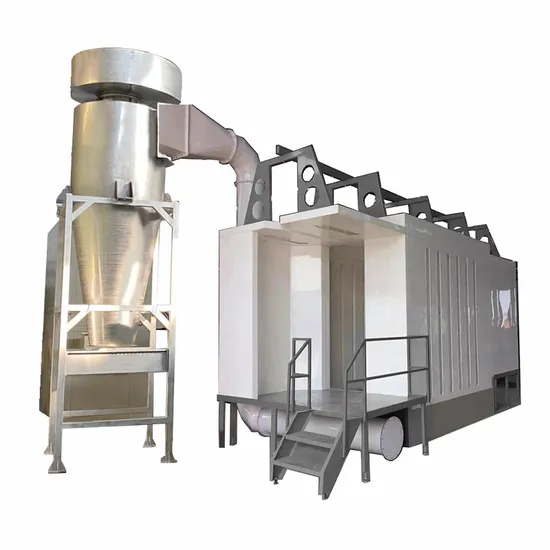

PP Automatcic Powder Coating Booth, Electrostatic Painting Chamber with Cyclone
Automatic Cyclone Powder Coating Booth, constructed with plastic booth chamber and stainless steel cyclone, which is specially built for multi-color coating lines. As the booth wall is made of anti-static plastic it does not attract powders which minimizes powder accumulation on the surface. It is the best choice for quick color change and high powder recovery demands.

Application
The automatic powder coating booth with cyclone can get high efficiency and save powder. It combines manual labor with automated processes to optimize productivity and achieve consistent results.
Detail Features
PP Automatcic Powder Coating Booth Features
1. Mono cyclone achieves recycling efficiency up to 98%, a great saving of powders. A quick cleaning takes around 15 minutes.
2. The secondary recovey stage is combined with a group of high precision filters effectively capture ultra fine powders, thus only particle-free air discharged outside.
3. The booth floor integrated with various air cleaning system, periodically removes the powder accumulated on the booth floor and push it to the extraction and recovery system. The booth floor remains clean, with just a minimum amount of powder.
4. Allows custom design to select 2-24 pcs of auto spray guns to achieve any scale of production, one central control cabinet combines all gun controller for integrated operation, enbales to set parameters only at one host unit to control whole system.
5. Powder self-recycling feed center ensures maximum utilization of powder and least waste, so you no need to worry about the automatic powder recovery, filtering and powder return to the powder hopper.
Specifications
Cyclone Automatcic Powder Coating Booth Specifications

Model	COLO-S-PP
Booth Type	Automatic Type
Operator dimensions	Width1700 x Height 2100 x Length8600 mm
Weight	4000kg
Power supply	Electric
Nominal power	15kw
Voltage	380V/220V. customized as local.
Frequency	50-60Hz
Filters	Polyester
Filters count	32pcs (325*600)
Filters hang type	Rotary Wing, help filter cleaning
Filter cleaning system	Pneumatic
Booth Material	Wall:PVC; Floor PVC & Stainless Steel
Cyclone Material	Stainless Steel
Warranty	12 months

Customer cases
Packaging & Shipping
Packing: Large systems packed by pearl cotton,small systems packed by wooden box.
Lead time: Powder coating line usually about 30~50days.
Company Profile
We are a typical Chinese supplier and specialized in the research, development and production of powder coating lineequipment, such as powder coating line, powder coating gun, reciprocator, powder coating booth, powder coating oven, sancblasting machine efc. We also supply various kinds of powder coating spare parts to our customer. We insist in offering superior quality products and efficient service.
We commited to vour satisfactory and safety, if you are interested in our products,please feel free to contact us,thank you!
We are sincerelv looking to cooperate with you! Please feel free to contact us if you like our products.
PLEASE SEND US INQUIRY OR CALL FOR ORDERING, SHIPPING QUOTES, ESTIMATED LEAD TIMES.

---
