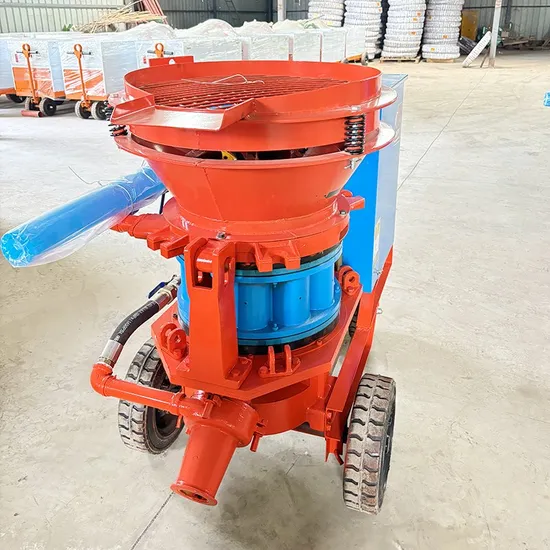

Chinese Manufacturer Refractory or Concrete Spraying Dry Mix Gunning Gunite Shotcrete Machine

Product Description

Product Description
The SPZ series concrete shotcrete machine are an anchor shotcrete support equipment for shotcrete,the features are well-structured,Perfect and stable performance. Easy to apply and maintain and durable.It's good at mine,tunnel,culvert,subway,slope support,hydropower engineering underground engineering and shotcrete construction of coal mine high gas mine roadway.

Model	SPZ-3	SPZ-5	SPZ-7
Spray capacity	3m³/h	5m³/h	7m³/h
Horizontal distance	200m	200m	200m
Vertical distance	20m	20m	20m
Water cement ratio	<0.4	<0.4	<0.4
Max. aggregate size	dia.20mm	dia.20mm	dia.20mm
Operating air pressure	0.4-0.6Mpa	0.4-0.6Mpa	0.6-0.8Mpa
Air consumption	3-4m³/min	6-8m³/min	12m³/min
Power	3kw	5.5kw	7.5kw
Size	1040*550*950mm	1300*705*1300mm	1700*900*1150mm
Weight	260kg	600kg	850kg

The working principle of the SPZ series concrete shotcrete machine:
The SPZ series concrete shotcrete machine is mainly composed by the driving device, rotorassembly , Airway system,injection system,electrical control box. Mixed materials are discharged from the mixer into the shotcrete vibrating screen mesh feeding hopper,Injected into the rotor body through the feeder then to the outlet,compressed air is introduced from the air chamber to blow the material into the discharge elbow,at same time another compressed air is introduced by the cyclone,the material is blown away in a multi-headed wind spiral state accelerate, and output rotation, float,to the material pipe,Then,add some water or liquid accelerator and spray it out.
Features of dry shotcrete machine:
1.Through-rotor,Smooth discharge,efficiency.2.Four-point elastic Compensation Compression,good sealing effect,less dust,Wearing parts reinforce.3.Low-pressure high-speed vortex air transport,overcome sticking in material conveying,plugging and pulse distraction.The material flow is uniform, continuous and stable.4.New nozzle,outlet elbow device,improve spray effect,less rebound,high quality spray layer.5.The shotcrete chassis can be assembled into a tire type,skid type and rail wheel type of various gauges. Detailed Photos

Application

More shotcrete machine options:
Packaging & Shipping

Certifications

Company Profile
Zhengzhou Sinogrout Machinery Co., Ltd. is a leading supplier of hydroseeder, shotcrete machine,grout pump, concrete pupmp,slurry pump,mortar pump,etc.construction machinery in China.Our factory is located in Xingyang, Zhengzhou City, Henan Province, it is in the middle of China. With more than 10 years of experience, Sinogrout has grown into a leading grouting equipment supplier in China, as well as an excellent supplier with ISO 9001:2008,SGS and CE certificate in above products in China. Our products have been exported to the Colombia, Greece, Singapore, Malaysia, Philippine,Vietnam, Jordan, India,Pakistan, Qatar, Bahrain...We are committed to develop new products to meet our customers' need, with the ability to provide the necessary technical support and engineering experience required.
FAQ
1. Q: What is output of your shotcrete machine? Do you have machine to spray dry concrete and wet concrete?
A: Yes, we have different models of shotcrete machine, the output is from 3m3/h to 7m3/h. Our shotcrete machine structure is similar with Aliva concrete spraying machine.
2. Q: Could you supply shotcrete machine with diesel engine, air motor?
A: Yes, our factory is professional on shotcrete production. We could make diesel or air motor concrete spraying machine.
3. Q: We want to have one person to control machine and spraying concrete, could you help us?
A: Yes, we could add remote control and adding a frequency modulator , then only one person can operate the machine.
4. Q: What is your warranty terms?
A: It is one year except wearing parts. We will delivery some wearing parts together with machine.
5. Q: What is the lead time?
A: Since it is our hot model, usually we have some in stock. If not in stock, it will take around 3 days for production.

---
