China Grain Storage Steel Silo Big Capacity 100-10000mt Grain Galvanized Steel Silo Prices

Product Description

Corn Pady Rice Barley Grain Storage Flat Bottom Steel Silos for Sale
1.Product Description
When the capacity of the warehouseis less than 12 meters, the bottom of the cementconeis generally used as the bottom of the cement cone. The bottom of the cement coneis pouredintoa frame type inverted cone funnel with cement and steel bar, so that the material can be discharged by self-help.When the diameter is morethan12 meters, because the height of the bottom of the cone is too high, it is generally chosen to make the bottom of the half cone or flat bottom,the bottom of the half cone can not be completely oblique clean material, the flat bottom needs multiple dischargeorthe selection of spiral warehouse cleaning machine.The low cost of cement cone is moderate but the construction cycle is a little longer.
The hopper, rings and support steel are made of hot-dip galvanized steel sheet. All TSE Grain Silos in hot-dip galvanized hopper cone for grain storage are designed in accordance D-4097 or ASTM D-3299 standards for elevated cone heads. According to the stored grain products and storing situations, the hopper or cone angles are commonly designed at 45º and 60º. The structure of hopper silo depends on the type of products to be stored. In generally, free flowing products pellet products like corn, wheat, soybean and feed pellets require the hopper bottom silo with a 45° angle while powder or other material which is hard to flow fits 60° cone bottom silo storage. 2.Specification

Model	Volume	Eave Height(m)	Total Height(M)	Weight(Ton)
TCZK06407	303	11.94	13.59	9.5
TCZK07309	503	14.64	16.5	14.1
TCZK08210	708	16.22	18.29	16.18
TCZK09011	960	17.79	20.07	25.5
TCZK10013	1360	20.47	22.97	30.766
TCZK11012	1536	19.79	22.5	35.5

3.Details Images
25º Sealed Roof
The special trapezoidal geometry of roof gives high strength and stiffness. The professional sealed technology enables tight connection of roof with the sidewall and keeps stored products from moisture.
Cylindrical Body
Shelley Brand hopper bottom silos are made with body sheets and stiffeners, manufactured with structural galvanized steel S350GD of high elastic tolerance and the coating equivalent to 600 g/m2 of zinc.
Galvanized Bottom
The cement flat-bottom grain steel silo is designed and constructed by reinforced concrete in accordance with the process requirements of the silo and the geological conditions of the construction site. Used for storage of large tonnage materials. It is characterized by large carrying tonnage, maximum storage capacity of up to 10,000 tons, convenient construction, and lower construction cost than cement cone bottom.
4.Applications for Grain silos

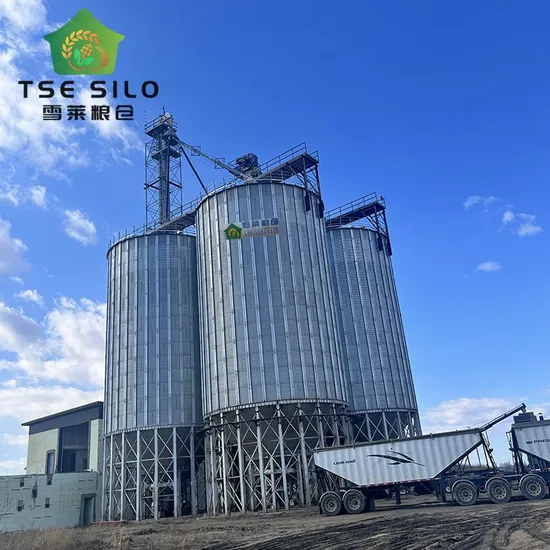

Hopper bottom galvanized Grain Silos are widely applied for the storage of grains (sunflower seeds, soy, maize, sorghum, rice, industrial products and other products, etc) and feed pellets for animal, poultry and fish that require special storage conditions. They can also provide temporary storage of wet grain as part of a grain drying plant and other buffer bin applications in silo plants. Galvanized Grain steel hopper bottom Silos are widely used in poultry farm, rice mill, flour mill, soybean-oil mill, animal feed mill plant and brewery plant.
5.TSE Grain Silos Installation
First of all, we can customize the granary that is most suitable for you according to your actual situation. After the cooperation is reached, we will send you a complete technical installation instructions, and you can find an installer to install locally; Secondly, if there are problems in the installation process, video communication can be carried out, and we will have professional engineers to guide the installation; Finally, if you need technicians to arrive at the site, we can also send professional technicians to the local area to guide the installation.

---
