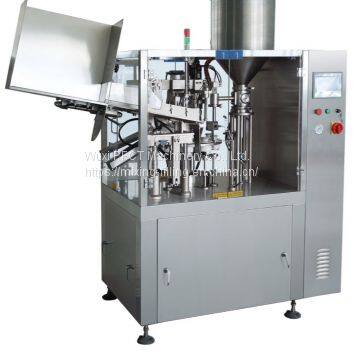

SGF-50 Auto plastic tube filling and sealing machine for creams

Product Details

Product Description

Product Description
Performance:
1. Full-automatically controlled by PLC. It is easy for display and operation by touch screen.
2. Adopt the spring tube pucks ensuring the same height of sealed end.
3. Automatic mark-finding device
4. This design can ensure the high filling accuracy with simple structure which is easy to remove and clean.
5. Hot air inside sealed the tube, cold water circle-cooled the outer wall of the tubes. That ensured the effect of the sealing.
6. Exhaust the harmful gases outdoors by fan.
7. Highly clear stainless steel frame
8. It’s easy to connect with emulsifier
9. It’s easy to operate between different sizes of tubes.
10. Tube filling sealing and batch code printing in end can be finished by system
11. Non-step frequency timing
12. Capacity setting control and capacity counting can be realized.
13. The batch code can be printed automatically in the request position
14. Alarming device safe-door device and machine self-stop device when over-loading
15. No tube no fill
16. Automatic tube-exiting device. It is convenient to connect with other equipment such as cartoning machine.
17. Alarming device
Alarming information will display on touch screen
18. Machine self-stop device when over-loading.
Alarming information will display on touch screen
19. Safe-door switching device.
When door opened,machine stops
20. Emergency stop button
Mechanical control parts:
1. Tube feeder
2. Press the tube into the tube holder
3. Mark-checking: up-down action
4. Filling nozzle down to the tube
5. Heating arrange (the tube up to near the heating ring)
6. End sealing
7. End cutting
8. Tube exist
Pneumatic control:
1. Open and close of the filling valve
2. Blowing system
Electric control:
1. Mark-checking: tube rotation (Stepper Motor)
2. Heating temperature (PLC control)

---
