Agricultural Machinery Implement Tiller Tube Pipe Disc Plough for Tractor

US$499.00 1 Piece (MOQ)

Basic Info.

Model NO.
OEM
Application Field
Agriculture, Livestock, Aquaculture
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Traction
Drive Type
Gear Drive
Certification
CE
Color
Orange
Warranty
One Year
MOQ
1
Delivery
on Time
Spare Parts
Spare Parts
R&D
Optional
Label
Optional
Painting
Optional
Transport Package
Pallet
Specification
OEM
Trademark
UMP
Origin
China
HS Code
8934500
Production Capacity
5000/Year

Product Description

Product Description

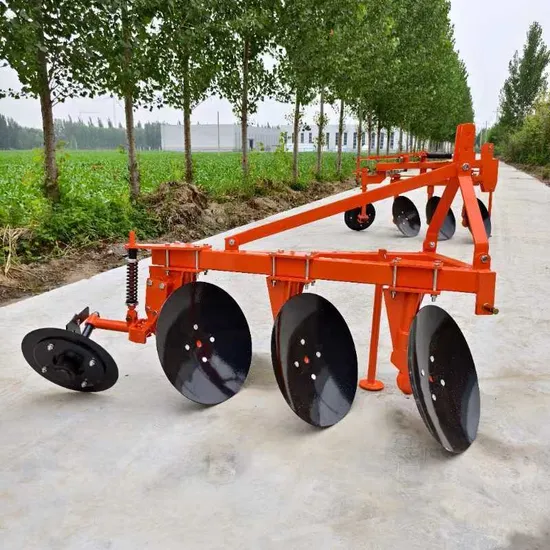

1LYX serious heavy-duty tube disc plough is completely mounted with tractor. In the operation process, the disc is rotating to turn the soil. Particularly, it is suitable for operation on the field with grasses, straw and stems of crops or plants, big soil resistance and with many stones and break brickbat, etc. In the field, it is good at cutting grasses and straw, free from stopped by the grasses, soil or stones. etc. It is efficient in the work. It is of good quality during operation. It is easy to adjust and strong and durable.
Product Parameters
Type 1LYX-230 1LYX-330 1LYX-430 1LYX-530 1LYX-630
Working width (mm) 600 900 1200 1500 1800
Working depth (mm) 250-300 250-300 250-300 250-300 250-300
No. of disc (PCS) 2 3 4 5 6
Dia of disc (mm) 660 660 660 660/710 660/710
Weight (kg) 320 400 490 650 750
Matched power(HP) 40-50 60-80 80-100 100-120 120-160

Detailed Photos
Company Profile
United Metal Products (Qingdao) Co., Ltd. Is located in west coast new economic district, Qingdao, China. Our products exported to the United States, Canada, Brazil, Germany, France, Italy, Denmark, Australia etc for more than 16 years. We have passed certification of ISO9000, ISO14001, TS16949. etc. We focus on metal parts including casting parts and machining parts for construction machinery, agricultural machinery, auto parts, railway parts etc. Machining casting parts, forging parts, aluminum die casting parts etc. Bar machining parts, shaft etc. Bolt/nut/washer. Welding parts, sheet metal part, bending parts etc. Fin-type radiators. Our vast experience includes parts ranging from 0.01kg to 1000 kg with annual volumes from 500 up to 200, 000 pieces in industries such as: Construction - Excavators, Articulating Dump Trucks, Graders, Pavers, Wheel Loaders, Skid Steers, Asphalt CompactorsAgriculture - Tractors, Combines, Sprayers, Seeders, Implement Attachments, Planters, Air Drills, Cultivators, BalersMaterial Handling - Forklifts, Reach Trucks, Order PickersAerial Platforms - Scissors Lifts, TelehandlersRail/Transportation - Freight TrainsForestry - Feller BunchersMining - Mining Trucks
