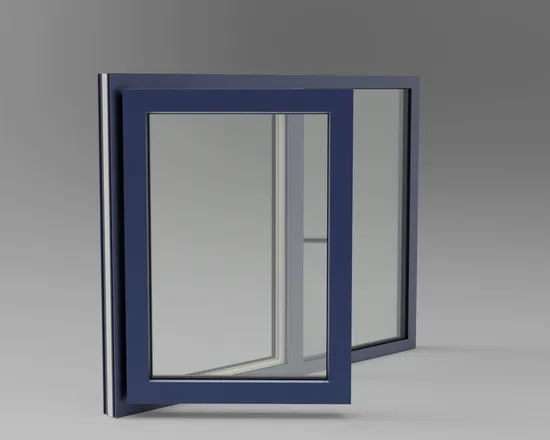

Jc77 Minimalist Aluminum Casement Window As2047 High Water Tightness Soundproof for Bathroom

Product Description

Product Description
1. The profile adopts a high load-bearing structure, which effectively shares the weight of the glass with the wall structure and prevents the profile insulation strip from breaking.
2. The standard configuration uses nylon transmission rods for transmission, which can reduce unnecessary noise generated by a large amount of hardware and provide a smooth feel.
3. Adopting a three-layer sealing structure with EPDM sponge composite sealing strips, the multiple sealing layers enhance the window's air tightness and water tightness.
Product Parameters

JC77 Series Product Parameters
Water Tightness	△P≥700Pa					Window Frame	77mm
Air Tightness	q10≤ 0.5m³/(m·h)					Window Sash	87mm
Wind Pressure Resistance	P3≥5.0kpa					Frame Thickness	1.8mm
Thermal Insulation	1.3w/(m2·k)≤U<1.6w/(m2·k)					Sash Width	450mm-1200mm
Sound Insulation	35dB≤Rw<40dB					Sash Height	500mm-2200mm
Opening Method	/					Bearing	110kg

Application Effect
Materials and Processes
A.Hardwares
The product can be equipped with either Chinese or international hardware brands, using high-quality hardware to enhance the overall performance and user experience.
B.Profiles
The product uses thermal break aluminium alloy profiles, designed with thermal break strips, offering excellent thermal insulation performance, energy efficiency, corrosion resistance, and high strength, while being aesthetically pleasing and environmentally friendly, widely applied in high-performance windows and doors.
C.Glasses
The glass can be customized according to customer requirements, including insulated glass (double or triple-glazed), tempered glass, laminated glass, fire-resistant glass, integrated blinds glass, coated glass, smart glass, and bulletproof glass.
D.Processes
E.Packaging
Company Profile
A.General Information
JPSUN is the brand of Anhui Jinpeng Energy Saving Technology Co.,Ltd. We were established in 1993 and have been specializing in the door and window production industry for over thirty years. Dedicated to energy conservation and environmental protection, we primarily produces aluminum alloy doors and windows and plastic doors and windows. We consistently focuses on innovation, continuously introducing advanced production equipment and technologies to ensure high quality and high performance of the products. Moreover, the company emphasizes eco-friendly principles by developing and promoting energy-saving window products, contributing to green building and sustainable development. We continuously explore customer needs across various countries and markets, offering tailored solutions from design optimization to smart manufacturing, logistics, and comprehensive after-sales service.
B.Manufacturing CapacityOur company operates four manufacturing facilities with a workforce of nearly 1,000 employees, achieving an annual production capacity of 3 million square meters of doors and windows. Each facility is equipped with state-of-the-art machinery and automated production lines, and we have integrated an industrial Internet platform to blend traditional manufacturing with advanced digital technology, significantly boosting our production efficiency and quality standards. Furthermore, as the first door and window company in Eastern China to establish a national-level CNAS-certified laboratory, we have enhanced our expertise in material quality monitoring and product quality control. These strengths enable us to consistently deliver high-quality products to our customers on time. Automated Production Line National-Level CNAS Laboratory Industrial Internet Platform
C.Certifications and Patents
Main Advantages
1. We provide design, production, transportation, and after-sales full-process service, and professional building envelope solutions with a one-stop service.
2. With an annual production capacity of 3 million square meters,we ensure timely delivery for large-scale orders.
3. With a research and development team of over 30 members, we provide products that meet certification requirements in different regions.
4. With over 30 years of industry experience, we have built a mature supply chain system that reduces costs, improves delivery efficiency,and ensures stable quality.
5. We offer highly cost-effective products and can also meet customer demands for customized high-end intelligent products.

---
