Product Description
Product Description

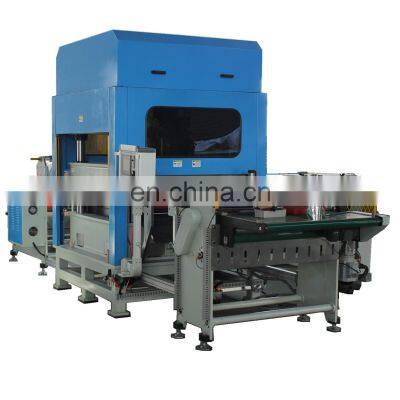

Product DescriptionSpecificationitemvalueSlide Stroke (mm)90Machine TypeFour-column Three-beam Hydraulic PressEjector Force (kN)400Return Force (kN)400kNSystemServoConditionNewPlace of OriginChinaJiangsuBrand NameDAPENGYear2020Voltage220V/380V 50HZ/60HZ are availableDimension(L*W*H)*Weight (T)4TModel NumberDP-650JMotor Power (kw)11kwKey Selling PointsAutomaticWarranty3 yearsApplicable IndustriesManufacturing PlantShowroom LocationNoneMarketing TypeOrdinary ProductMachinery Test ReportProvidedVideo outgoing-inspectionProvidedWarranty of core components1 YearCore ComponentsPLCPower SourceHydraulicCNC or NotNormalModelDP-650/800/1000Capacity ton40/40/100TTable-board underneath size600*650/600*800/600*1000mmTable height110/110/110mmHorse power7.5/7.5/7.5Max spacing100/100/100Max range100/100/100Nominal Force (kN)400Product DescriptionFirst , Machine main technical dataA. max die cutting speed 30- cuts/minute B. die cutting area 1000*1000mm(width * length )C. unwind roll max diameter 1000mmD. max paper roll diameter 1000 mm E. left to right position precision : ±0.050mmF. Step Accuracy : ±0.10mmG. Total power : about 6.0kwH. Power Voltage: 3P 380V 50HZI. Machine Net weight about 2500kgJ. machine size(length *width * height ): 2700*1450X1650mmAutomatic Feeding Hydraulic Press Machine Welded Steel plate framework, specially treated of 4 post to have high intensity and rigidity.Combined pneumatic friction clutch and brake.Equipped with lifting balance cylinder.Duplex valves imported.Electric compelling oil lubrication system.Control by PLC with international brand.Buttons, indicators, AC contactors, air circuit breakers and other controlling devices are imported from international brand.Equipped with hydraulic overload protecting device.Electric shut height adjustment with digital display.Electronic can device with intelligent top dead center stop function and several safety function.We can provide terminals according to customized die requirements. We aslo can provide automatic feeding device to realize autoproduce of the press. Second , machine configuration1 , unwinding partA. Aluminum guiding roller B. unwinding air-shaft C. unwind pulling material roller + steel roller D. unwind pulling material motor300WE. unwind damping device F. Electric Eye ( paperless automatic stop)2, laminating part ( optional function ) 1. filming device ( unwinding function )A. Filming unwinding roller 2. filming device ( unwind rewind function ) A. filming unwinding roller B. filming rewinding rollerC. filming rewinding motor D. Aluminum guiding roller 3. Rectification systemA.Aluminum guiding roller B. rectification motor C. Rectification electric eye4. printed mark tracing part ( optional part )A. Paper platform B. Electric eye holderC. Color tracking electric eye5. punching hole part ( optional part ) 1.Mechanical type punching holeA. punching hole mold B. Connection block (connect with up die cutting plate)2. Pneumatic punching holeA. punching hole mold B. Pneumatic cylinder6. die cutting partA.Die cutting seat assembly (can move left and right – paper unwind direction)B. Main motor C.automatic supply oiling system ( copper tube connect wire, semi sealing type , Lubricating oil recycling )D.Buffer springE. Down cutting plate seat height adjustment ( 2 Inclined plate)F. Up cutting plate seat Obliquely turn up system ( more easy to change the cutting dies)7. Pulling material part A.pulling material roller+ steel roller B.pulling material servo motor 2.2kw C.Timing belt8. Waste scrap part A. guiding roller B. waste scrap rewind rollerC. Buffer Disposal Device - Optional function(For some thick adhesive material difficult to scrap material )9. sheeting blade partA.Aluminum guiding roller B. Cutter clutch assemblyC. up cutting blade (inserting steel) D. down cutting blade (inserting steel)10. Rewinding partA. Aluminum guiding roller B. rewinding cushioning deviceC. Rewinding pulling material rubber roller+ steel rollerD. rewinding motor 800W ( when sheeting can stop)11. Hot foil stamping part ( optional part )1. Stepper motor stamping deviceA. Hot stamping unwind roller B. Aluminum guiding rollerC. hot stamping pulling material rollerD. hot stamping pulling material motor ( stepper motor ) 2. Servo motor hot stamping deviceA. Hot stamping unwind roller B. Aluminum guiding rollerC. hot stamping pulling material roller D. hot stamping pulling material motor ( servo motor 0.75KW Zhejiang Dongling)12. electric control partA.PLC (Panasonic) B.Touch screen ( Weinview TK6070IQ)C. Servo motor driver (Zhejiang Dongling) D. Frequency speed converter ( HUALAN)E. Power switch 220-2-110( Taiwan )13. metal sheet , safety cover etc14. othersA. Tools B. Operation manual Why Choose UsCertifications
>>
