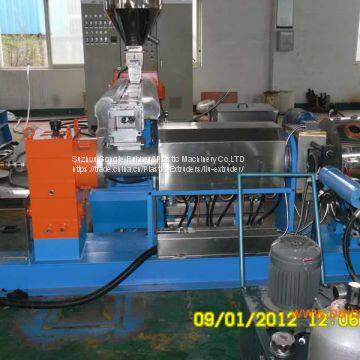

pvc pe Wire and Cable Sheath Compound Extrusion Machine
Product Details
Product Details
Product Description
Product Description For this end product, we have two process: one is two stages extrusion machine ,the other is knead + single screw extruder w e should recommend the suitable one for you according to your endproduct. Hope to be understood 1 Two stage extruder: The first compounding extruder runs at a high speed for good mixing and high output capacity.The second extruder must be a larger diameter single screw one that can run at lower screw speed .The lower screw can avoid over –heating by internal cooling system and strong heat exchange ability .The functional separation allows operator to more flexibly control the expectable material mixing process and temperature. Features of product: 1.advanced equipment, precise pelletizing and high producing capacity. 2. Conical double-screw extruder, very suitable to process POM XLPE PVC powder with high capacity 3. Pelletizing style: Hot-cutting on mould face, even cutting ensures good shape. 4. Auxiliary machine: Pellets cooling & classifying 2 knead + single screw extruder Kneader diespersion+single screw mixer specifications A unit, system technical parameters of granulation process: kneader dispersion mixer - cone double feeding machine - single screw extruder--- brace head and net exchanger - granulator - material box This is better performance than the twin screw extruder
