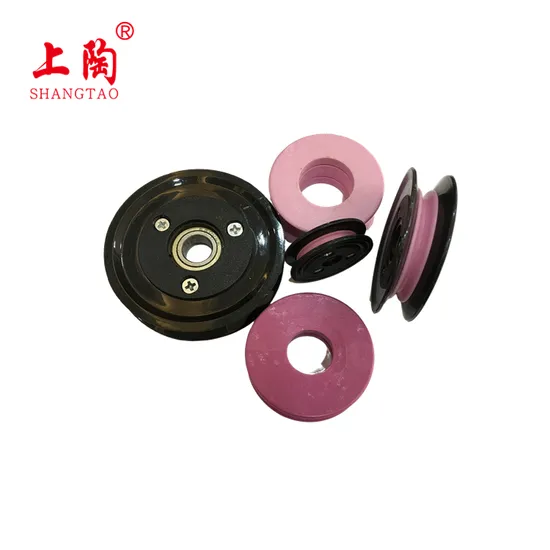

2021 Shangtao The New Yarn Guide Textile Ceramic

Product Description

Gongtao can supply and custom made the steatite ceramic products according to customer's drawings, samples and performance requirement.
Property:
1. High resistivity
2. Moderate strength
3. Excellent electrical properties
4. Poor heat conductivity (thermal insulator).
5. Good resistance to thermal shock.
6. Low coefficient of thermal expansion.
7. Good mechanical stability.
Applications:
Heating element holders
Stand off insulators
Interlocking insulating beads
Splitbush insulators
Lamp bases and caps
Regulator parts
These beads are for protecting power lead wires with different size.
Material: White steatite ceramic, yellow steatite, alumina.
Property of material:

Material	85 Al2o3	90 Al2o3	95 Al2o3	99 Al2o3
Al2o3	85%	90%	93%	99.30%
Fe2o3	≤ 1.0	≤ 0.5	≤ 0.5	≤ 0.3
Desnsity: g / cm3	3.4	3.5	3.6	3.85
Vickers Hardness	≥ 8.6	≥ 8.8	9	9
Water Absorption:%	≤ 0.2	≤ 0.1	≤ 0.085	≤ 0.01
Refractoriness:°C	1580 °C	1600 °C	1650 °C	1800°C
Flexural Strength:Mpa	180	200	240	280
Wear Rate( at room temperature, erosion, 100 grinding)%	≤ 3	≤ 2.5	≤ 1	≤ 0.5

---
