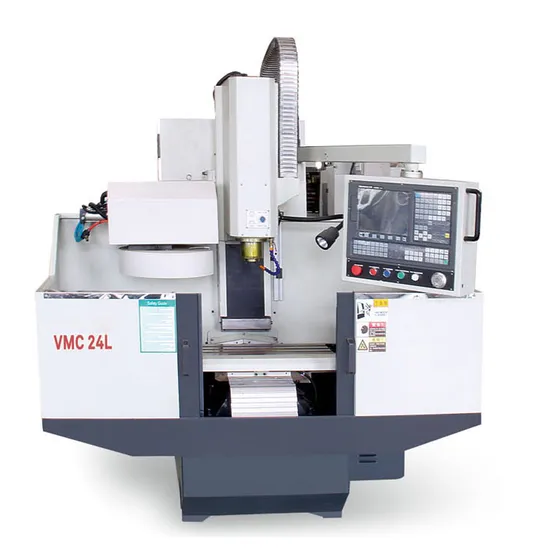

Xk7124L Mini small 5aixs metal CNC Milling Machine for sale
| Model | UTMK240, UTMK240A | XK7124 |
| WORKTABLE | Size of worktable(L×W)(mm) | 800×240 | 810×240 |
| 900×240 Optional | 900×240 Optional |
| T slot(width ×qty×spaces)(mm) | 16×3×60 | 16×3×60 |
| Max loading weight on worktable(kg) | 60 | 100 |
| TRAVEL | X/Y/Z-Axis travel(mm) | 430×280×400 | 430×280×400 |
| 530×280×400 | 530×280×400 |
| Distance between spindle nose and table(mm) | 60-460 | 50-450 |
| 50-550 |
| Distance between spindle center and column(mm) | 297 | 297 |
| SPINDLE | Spindle speed(r/min) | 100-4000 | 100-6000 |
| Spindle taper | BT30 | BT30 |
| Tool clamping way | Manual/Pneumatic | Pneumatic |
| ATC capacity(optional) | no | 4pcs Simple ATC |
| FEEDING | Feeding speed(mm/min) | 0-2000 | 0-2000 |
| Rapid feeding speed:X,Y,Z axis(m/min) | 6 | 6 |
| ACCURACY | Positioning accuracy(mm) | 0.04 | 0.04 |
| Repeatability accuracy(mm) | 0.02 | 0.02 |
| Min.set unit(mm) | 0.001 | 0.001 |
| MOTOR | Main motor power (kw) | 1.5(A/C motor) | 2.2/3.7 |
| Feeding motor power:X/Y/Z Axis(kw) | 2001-1-1 | 1/1/1.5 |
| TOOLS | Max.size of tool(mm) | Φ60×175 | Φ60×175 |
| Max.loading weight of Tool(kg) | 3.5 | 3.5 |
| OTHERS | N.W(include machine stand)(kg) | 900 | 1000 |
| Overall size(L×W×H)(mm) | 1640×1205×1950(2050) | 1640×1205×1950(2050) |
| Packing size(L×W×H)(mm) | 1900×1620×2480(2580) | 1900×1620×2480(2580) |
| Loading amount(20") | 3sets | 3sets |
-- SIEMENS 802S. 802C control system.
