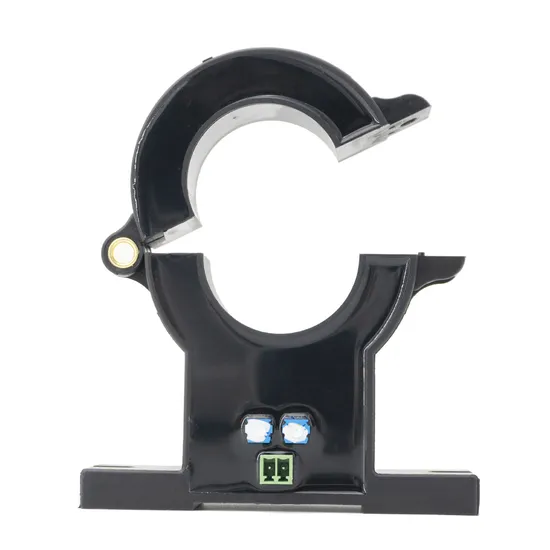

Tr New 70mm Aperture Hall Current Sensor Input AC 1000A Output DC 4~20mA DC Split Core Current Transducer Sensor

Product Description

Product Description

PRODUCT OVERVIEW The sensor works on the principle of direct measurement Hall detection. The magnetic flux generated by the primary current is gathered in the magnetic circuit, and the Hall voltage signal is detected by the Hall device. After amplification by the amplifier, the voltage signal accurately reflects the primary current.Product Features Measures AC, DC and pulsed signals
Excellent accuracy, good linearity
Strong resistance to external interference, high common mode rejection ratio
Low temperature drift, low power consumption, wide frequency band
Perforated structure, no insertion loss
Scope of Application AC frequency conversion speed regulation
Servo motor traction
Uninterruptible power supply(UPS)
Welding machine, battery power supply

Electrical data TR2231B-LKH24
@TA=25ºC,unless otherwise stated
Type		TR2231B-LKH24
IPN	Rated input	600A AC	1000A AC	1500A AC
IPM	Measure range	660A AC	1110A AC	1650A AC
VOUT	Rated output current	4~20mA
VC	Power supply	+24V DC(± 5%)
Io	Offset current	≤4±0.1mA
εL	Linearity	≤1%FS
X	Overall accuracy	±1%FS
BW	Frequency Bandwidth-3db	20Hz-6KHz
di/dt accurately followed		>1A/ms
VO	Zero offset current	≤4±0.1mA
TR	Response time	<200Ω
RM	Load resistance	≤250Ω
VD	Isolation voltage	50Hz,1min,3KV
IOT	Offset current drift	≤0.005mA/ºC
IOUT	Amplitude current temperature drift	≤0.01mA/ºC
TA	Ambient operating temperature	-40~+85ºC
Ic	Current consumption	≤30mA+Is
TS	Ambient storage temperature	-40~+95ºC
W	Mass	≈280g

Mechanical characteristics General tolerance± 0.5 mmFixing hole sizeΦ4.5mmFastening steel screw M4Recommended fastening torque1.0Nm (± 10 %)Connection of secondaryKF2EDGCV-Y-3.5-4P
RemarksThe false wiring may result in the damage of the sensor. VOUT is positive when IP flows in the direction of the arrow. The temperature of the primary busbar must not exceed 130 ° C

---
